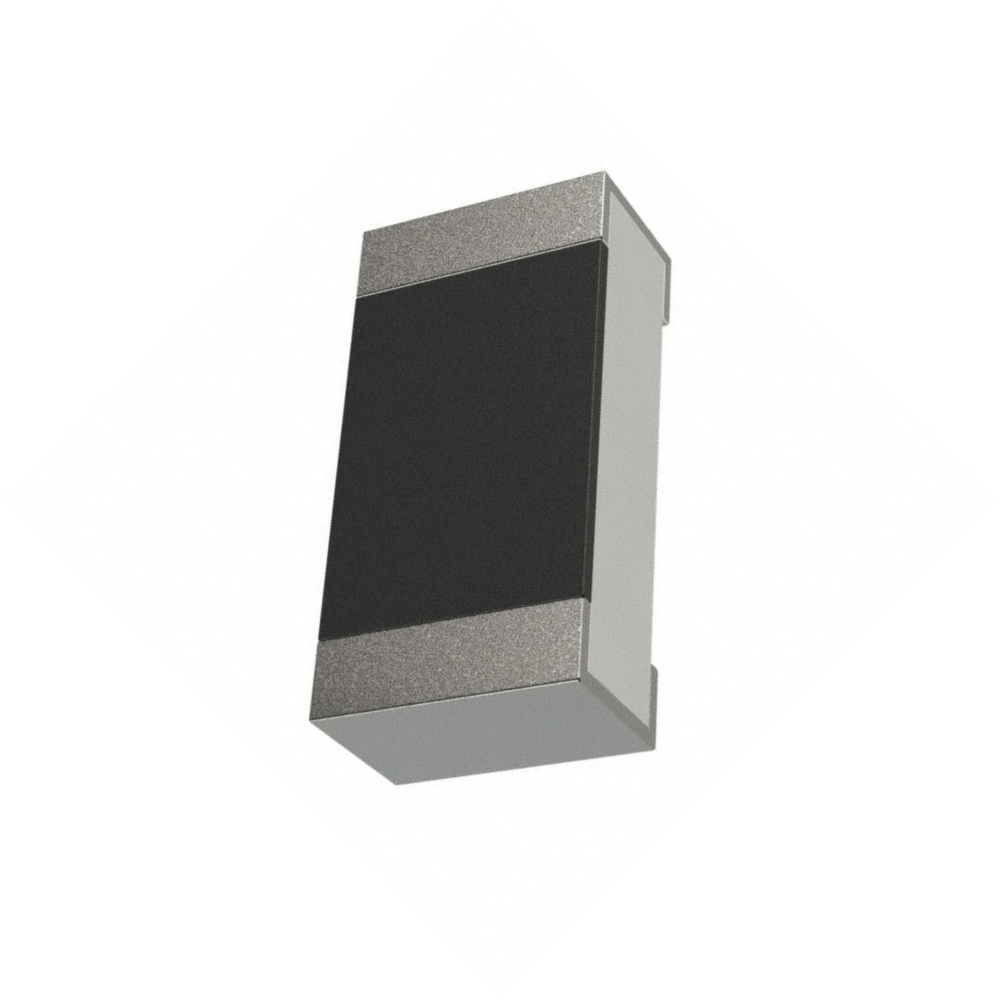

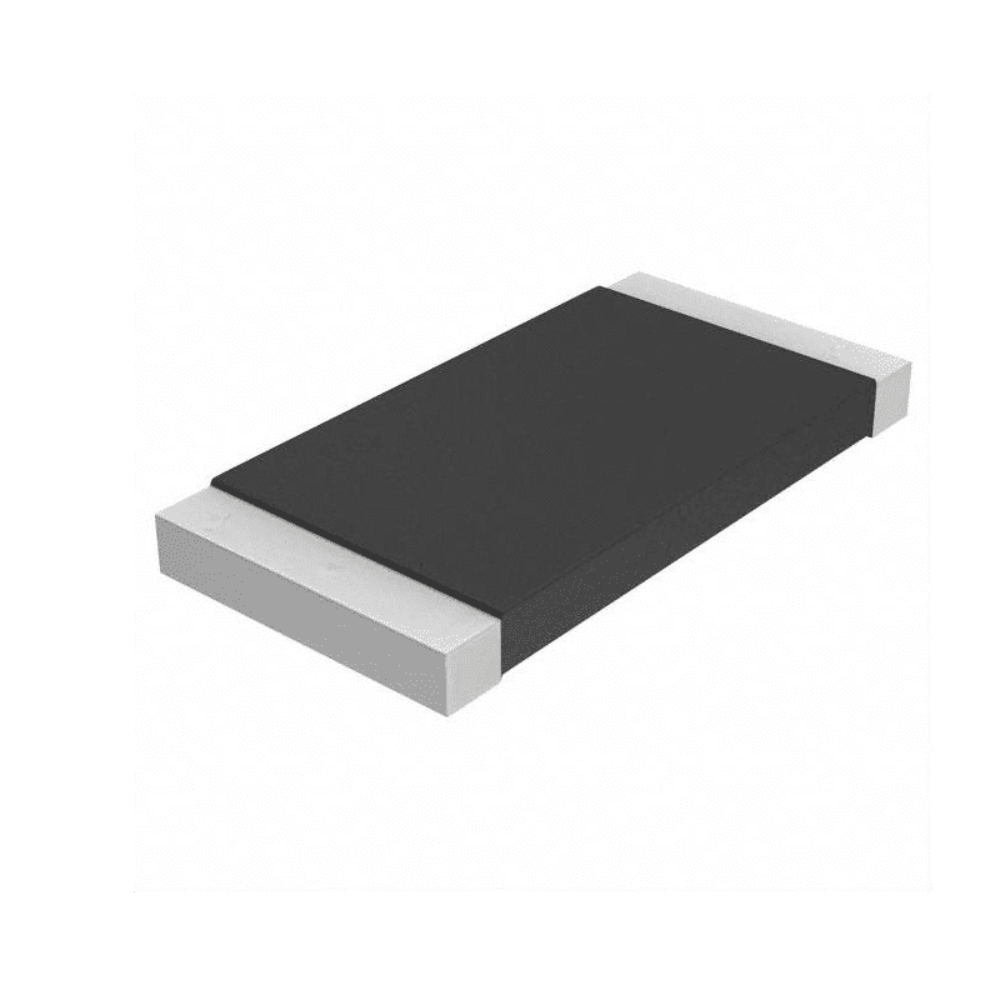

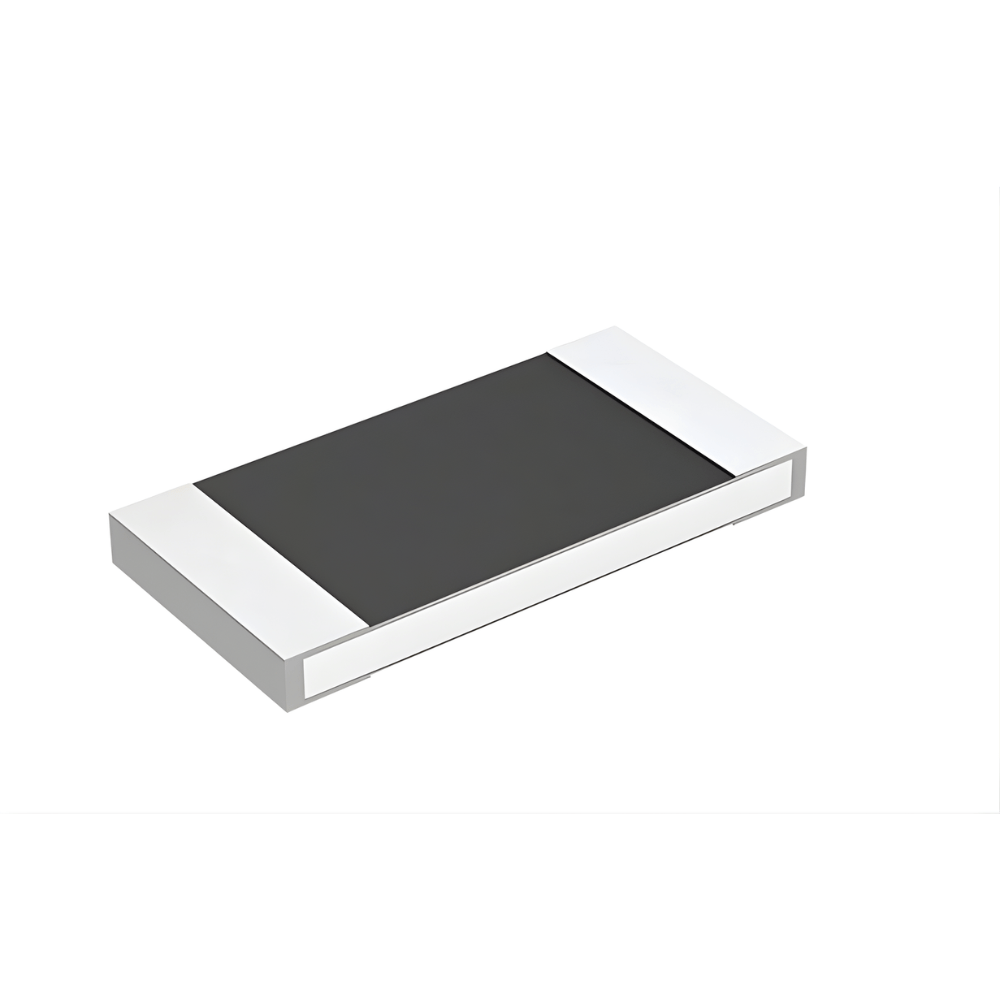

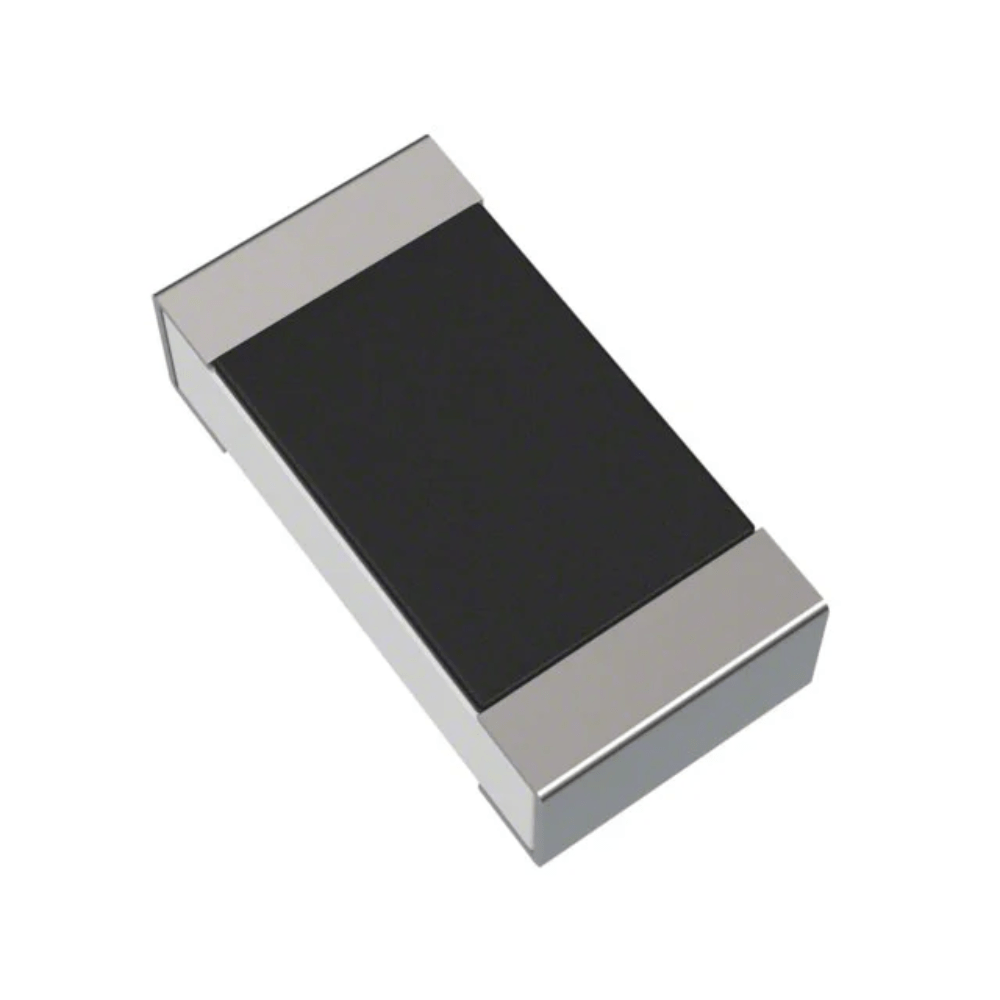

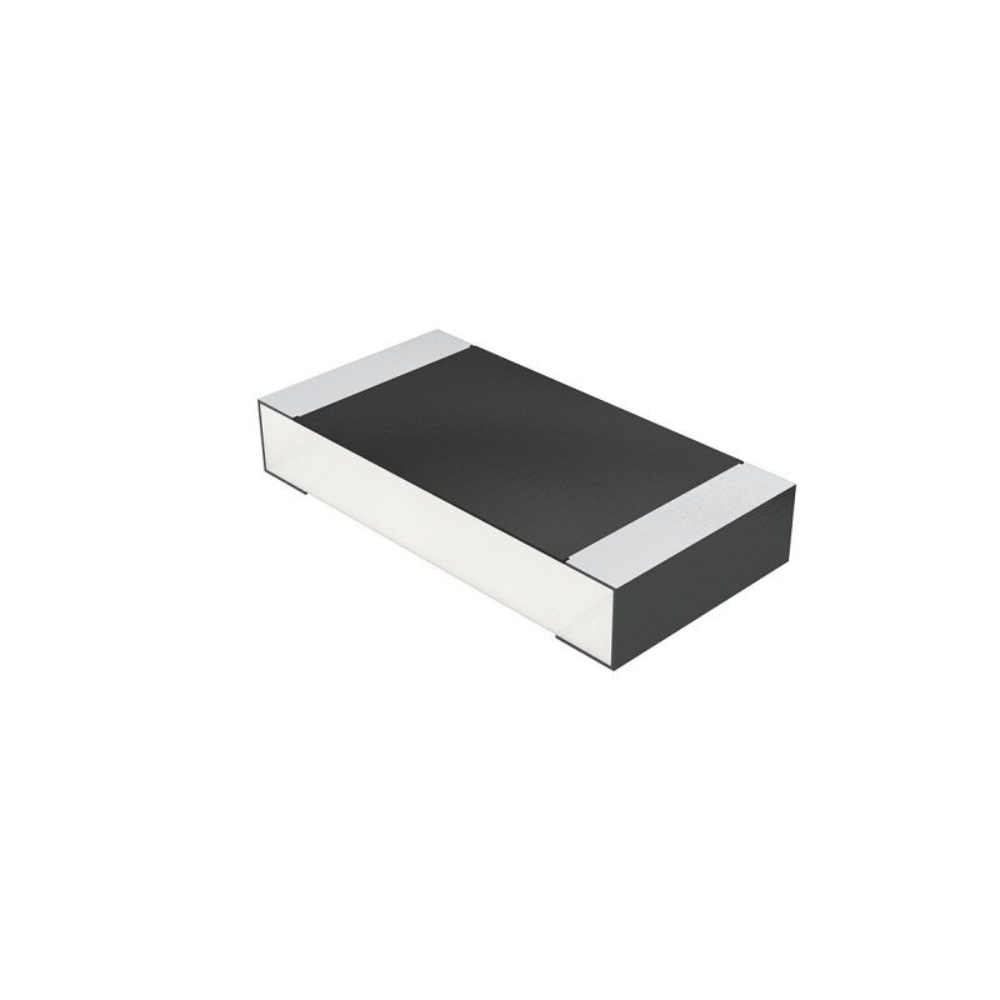

1.5E 2512 5% 1W 200ppm Chip Resistor (Pack of 25)

Description

The 1R5 Ohm 2512 1W Surface Mount Sense Resistor is a low-resistance, high-power resistor designed primarily for current sensing applications in power management circuits, battery monitoring, and motor control systems.

Key Features:

1. Resistance Value: 1.5Ω
2. Package Size: 2512 (metric: 6432)
3. Power Rating: 1W
4. Tolerance: ±5%
5. Temperature Coefficient: Low TCR, often ±200ppm/°C or better
6. Material: Constructed using metal alloy or thick film technology for stability and low inductance
7. Termination: Designed with flat, wide terminals for improved heat dissipation and lower contact resistance
8. Mounting Type: Surface mount (SMD), compatible with automated assembly

Applications:

1. Used in DC-DC converters, power supplies, and battery management systems to measure current flow.
2. Overcurrent Protection: Helps detect excessive current conditions in power circuits.
3. Automotive Electronics: It is suitable for engine control units (ECUs), motor drivers, and electric vehicle battery packs.
4. Industrial and Consumer Electronics: Used in power tools, LED drivers, and embedded power monitoring circuits.

Package Includes:

25 x 1R5Ohm 2512 1W Surface Mount Sense Resistor
