1N4007 Diode (Pack of 20)

Description

1N4007 is a PN junction rectifier diode. These types of diodes allow only the flow of electrical current in one direction only. So, it can be used for the conversion of AC power to DC. 1N 4007 is electrically compatible with other rectifier diodes and can be used instead of any of the diodes belonging to the 1N400X series.

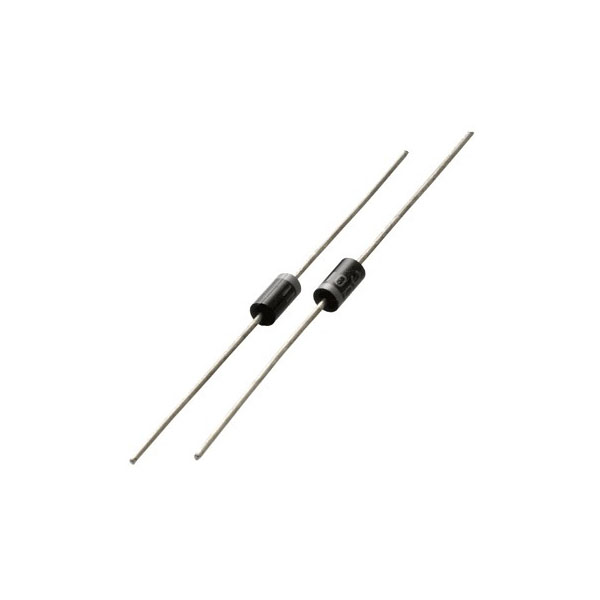

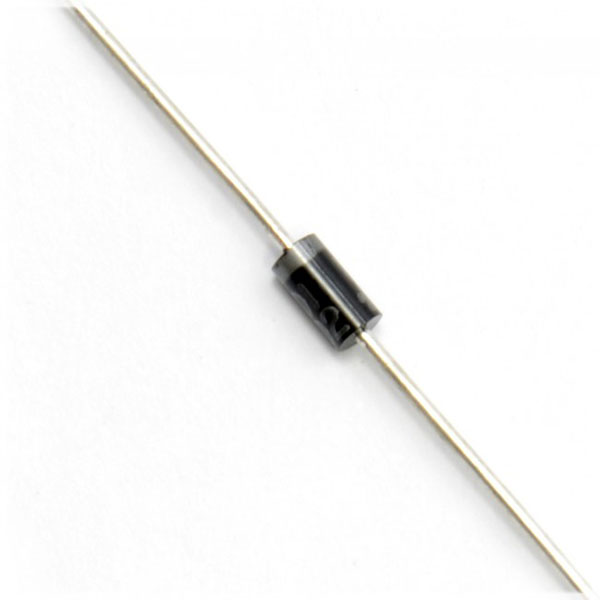

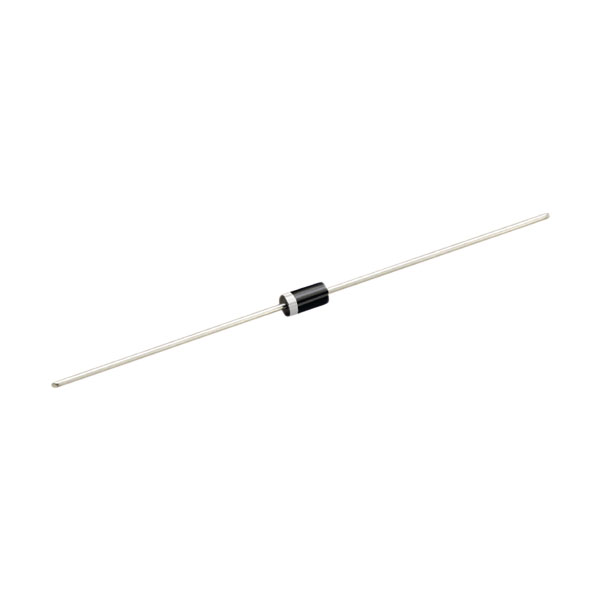

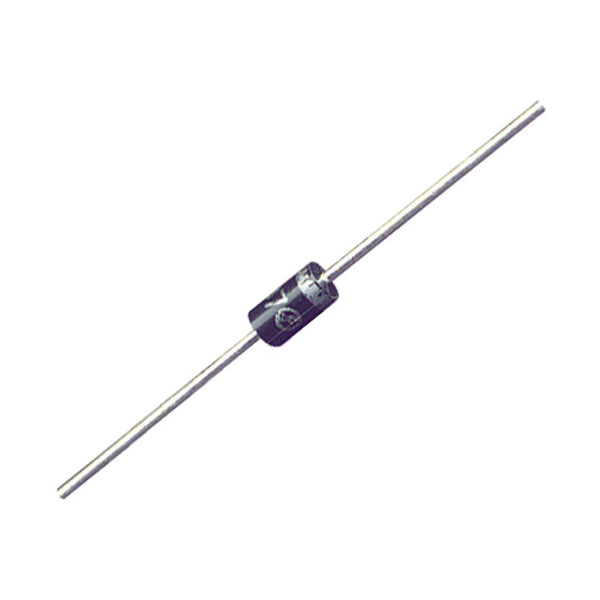

A diode is a device that allows current flow through only one direction. That is the current should always flow from the Anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above.

For 1N4007 Diode, the maximum current carrying capacity is 1A it withstands peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A.  The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.

you can also look for :

• Zero PCB.
• Soldering Assessiores.

Applications:

1. Rectification
2. Power Supplies
3. Voltage Regulation
4. Protection Diode
5. Half-Wave and Full-Wave Rectifiers
6. Battery Charging and Discharging Circuits
7. Voltage Clamping
8. Flyback Diode
9. Motor Control
10. Signal Demodulation
11. Voltage Multipliers
12. Lighting Control
13. Switching Circuits
14. DC-DC Converters
15. Protection in Automotive Circuits

Datasheet available here.

Package Include:

1 x 1N4007 Diode (Pack of 20)
