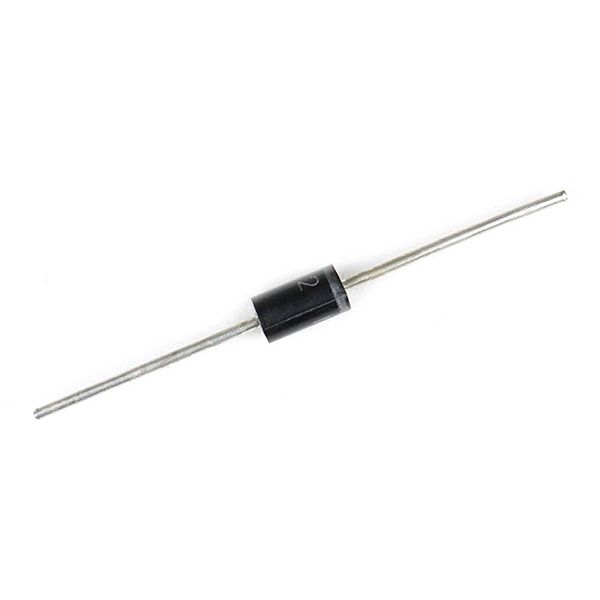

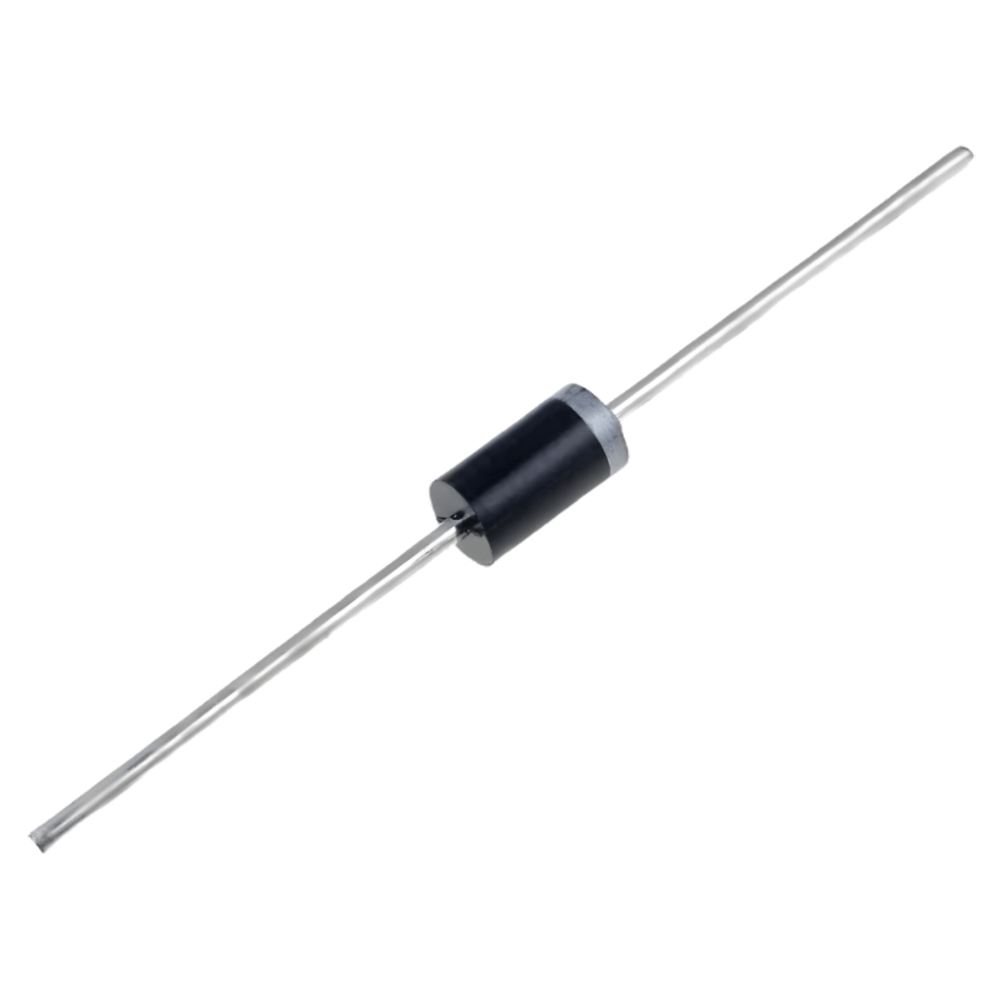

1N5822 1W Schottky Diode (Pack of 10)

Description

Schottky diodes have very low forward drop voltage V_F which makes them ideal for fast switching applications at lower current ratings. 1N5822 have forward voltage drop of minimum 0.525 V that is it requires 0.525 V to conduct in forward biased direction. The 1N5822 has maximum average forward rectified current IF_(AV) of 3A. The maximum repetitive peak reverse voltage V_RRM for 1N5822 is 40V.

How to use a 1N5822?

Schottky diode requires very low forward voltage to conduct in forwarding direction, therefore they are mostly used in power supply, fast switching applications, etc..

Above circuit shows the diode connected in forward biased inorder to switch ON/OFF the LED. The power source used in the circuit is 3.7V battery. As seen the Schottky diode operates at low voltage and the LED is switched ON.

Specifications-

• IF_(AV) 3.0 A
• V_RRM 20 V, 30 V, 40 V
• IF_SM 80 A
• V_F 0.475 V, 0.500 V, 0.525 V
• TJ _max. 125 °C
• Package DO-201AD

Applications of 1N5822-

• Low voltage high-frequency inverters
• Freewheeling
• Dc/dc converters
• detect signals
• Polarity protection applications
• radio frequency (RF) applications
• logic circuits, due to fast switching
• Schottky diodes are used in switched-mode power supplies

Package includes:

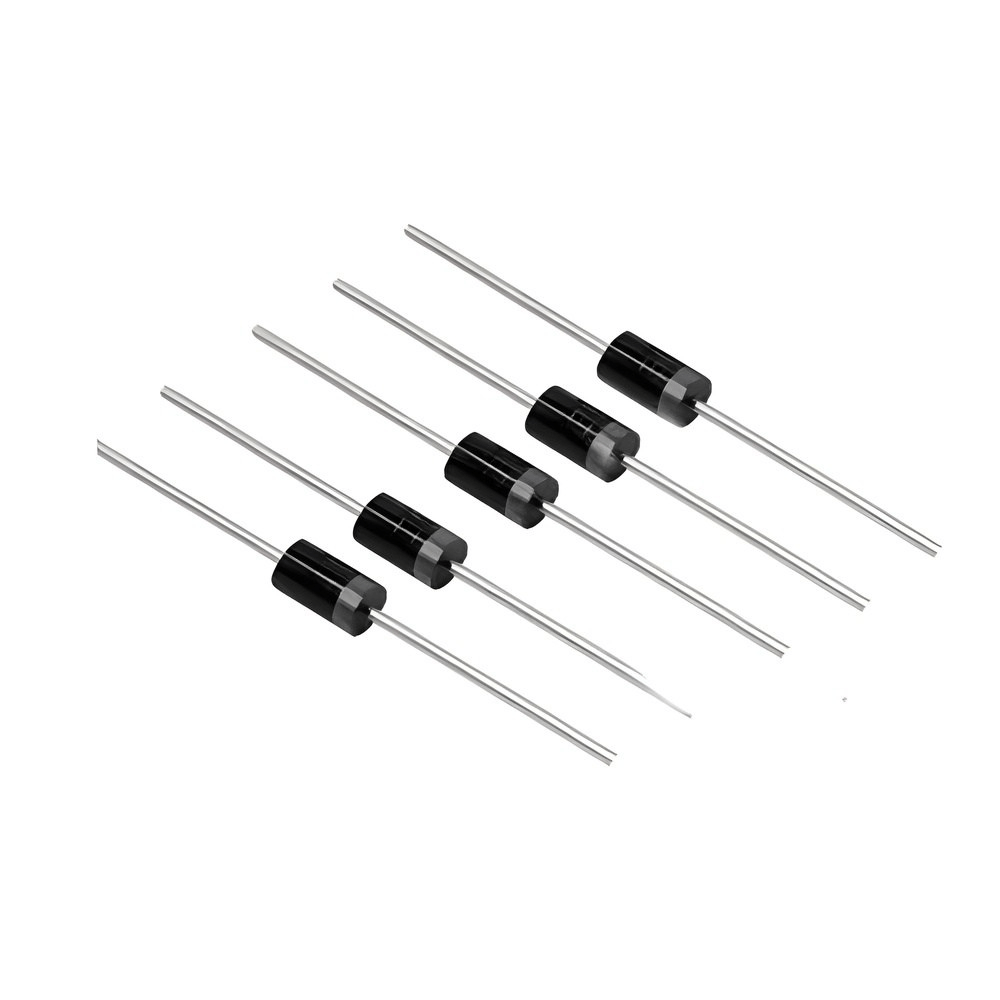

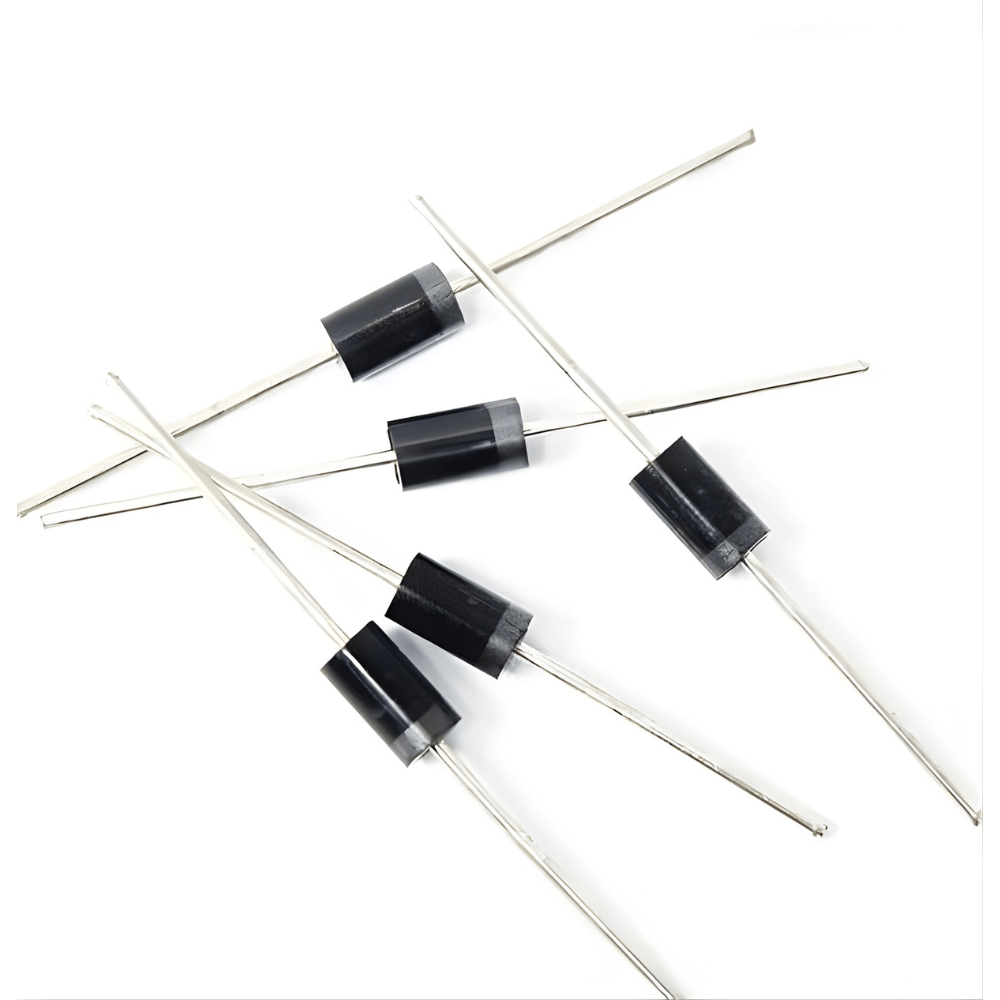

1 x 1N5822 1W Schottky Diode (Pack of 10)
