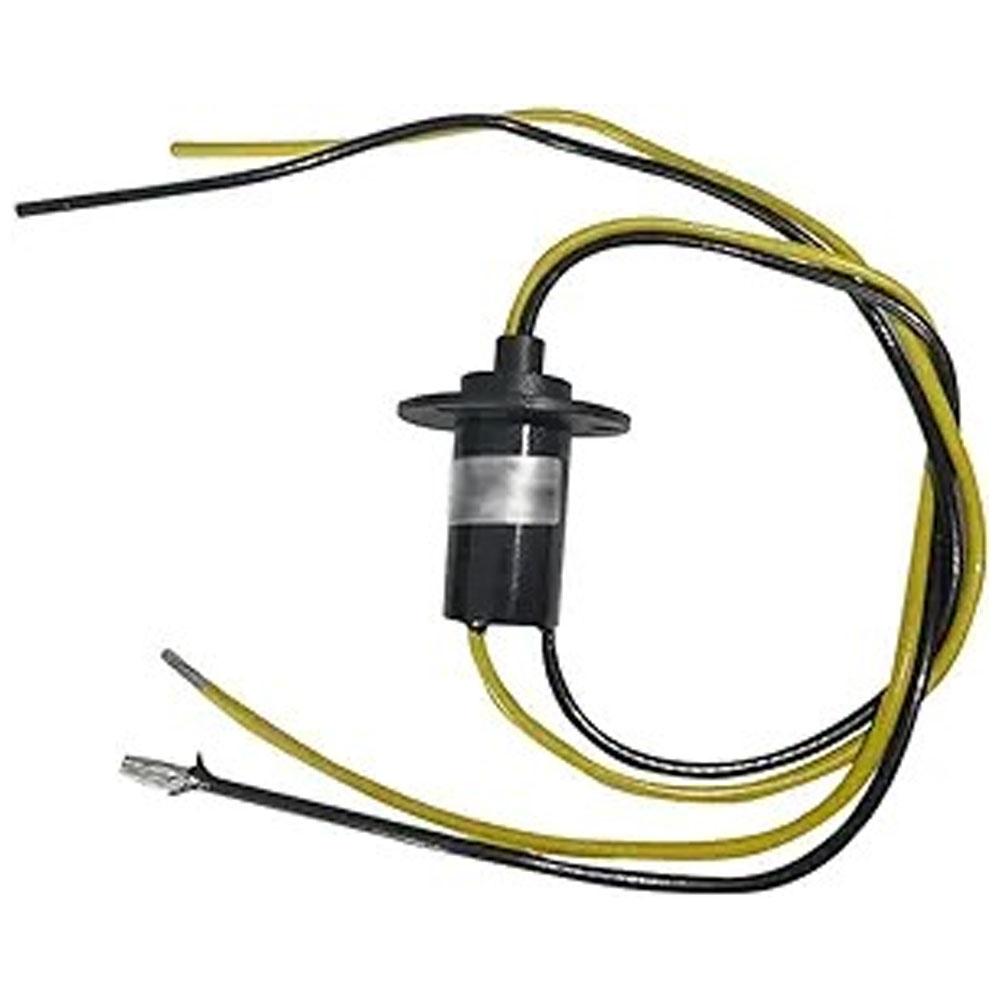

2 Wires 30A Circuits 250Rpm Capsule Slip Ring 600V For Monitor Robotic

Description

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

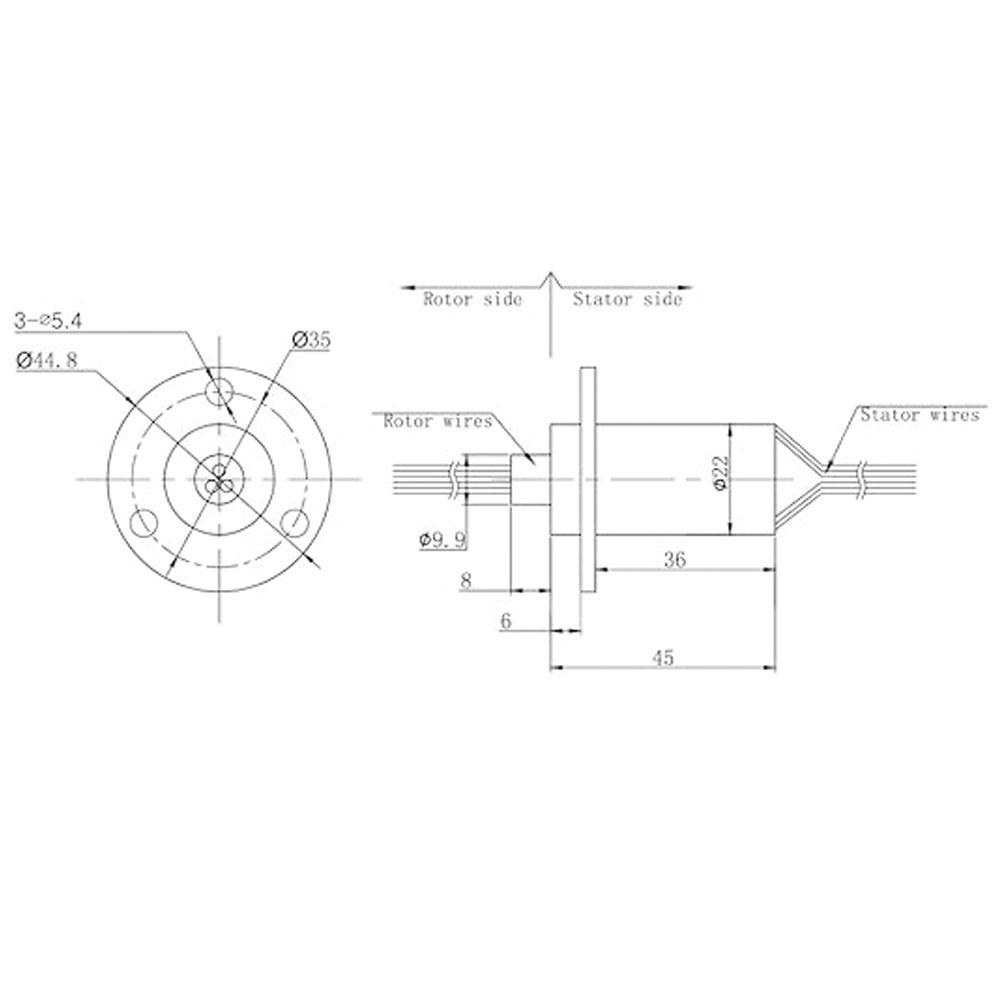

MW1230 slip rings are small and compact with OD 22mm * L47mm, standard, off-the-shelf. Color-coded lead wires are used on both the stator and rotor for simplified electrical
connections. Using a 90° V-groove ring design for each ring.

Actual Make May Be Vary As per stock availability. The above video is only for understanding slip ring functions.

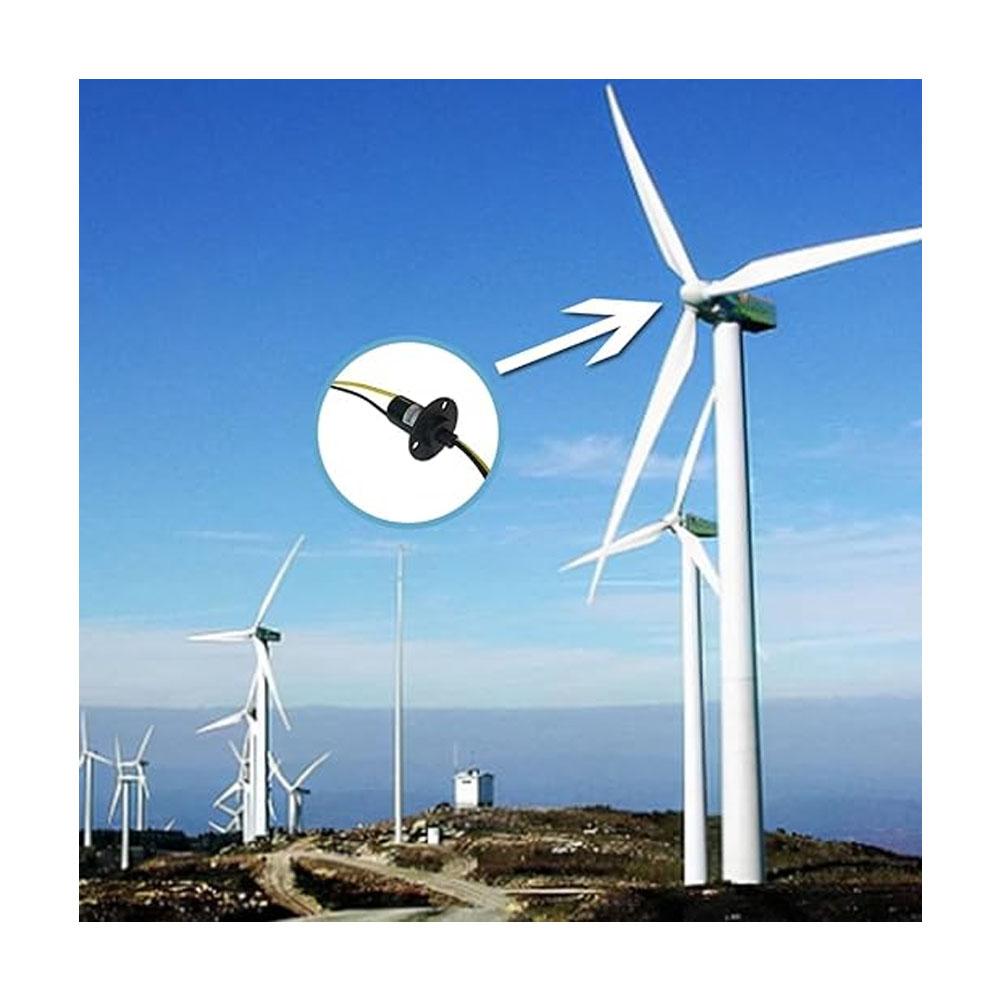

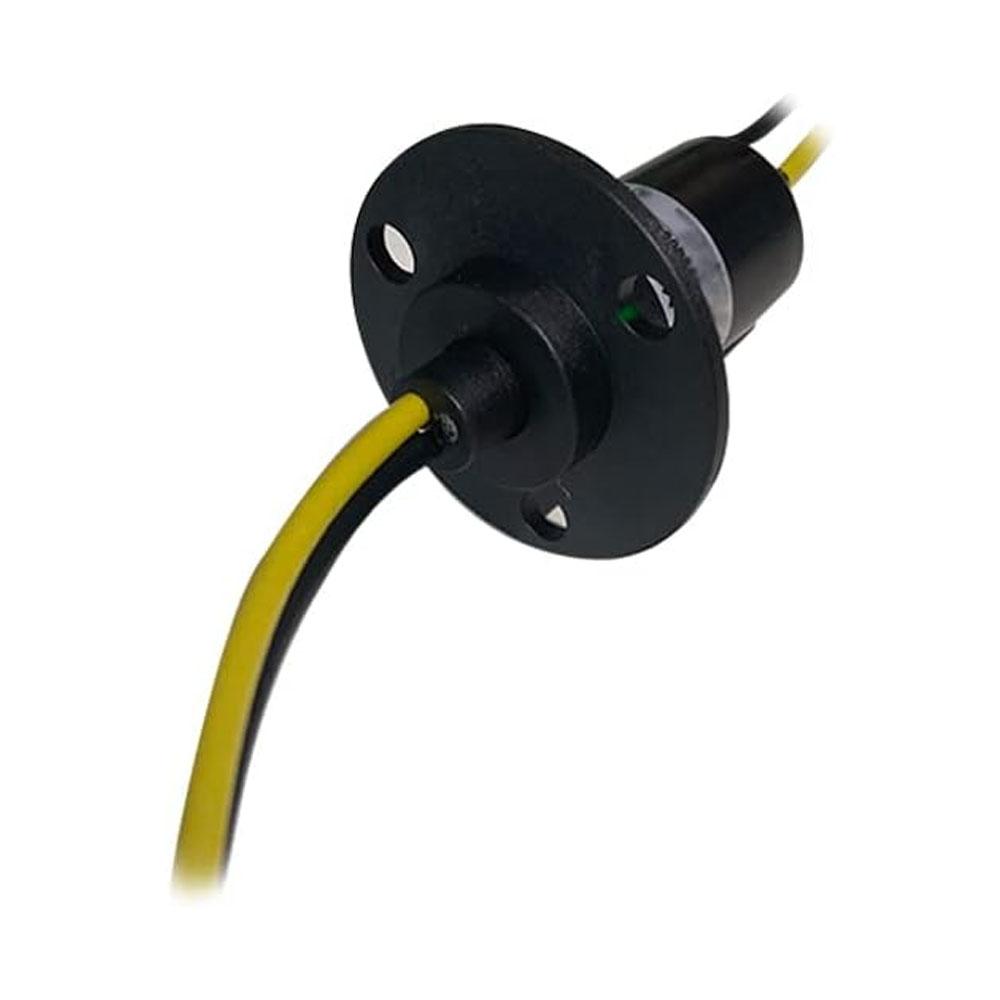

The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. Used advanced technology to design, and lower consumption. Mini Slip Ring 250RPM 30A 2 Wires 0-600V Multi-channel Transmission Anti-jamming for Wind Turbine Power Generator.

It can combine signal and power in the same slip ring, completely satisfying 360 degrees of rotation
Precision module provides long time maintenance-free operation(no cleaning or lubrication required);

Datasheet of 2 Wires 30A Circuits 250Rpm Capsule Slip Ring 600V For Monitor Robotic

Packing List:

1 x 2 Wires 30A Circuits 250Rpm Capsule Slip Ring 600V For Monitor Robotic

*Product Images are shown for illustrative purposes only and may differ from the actual product.
