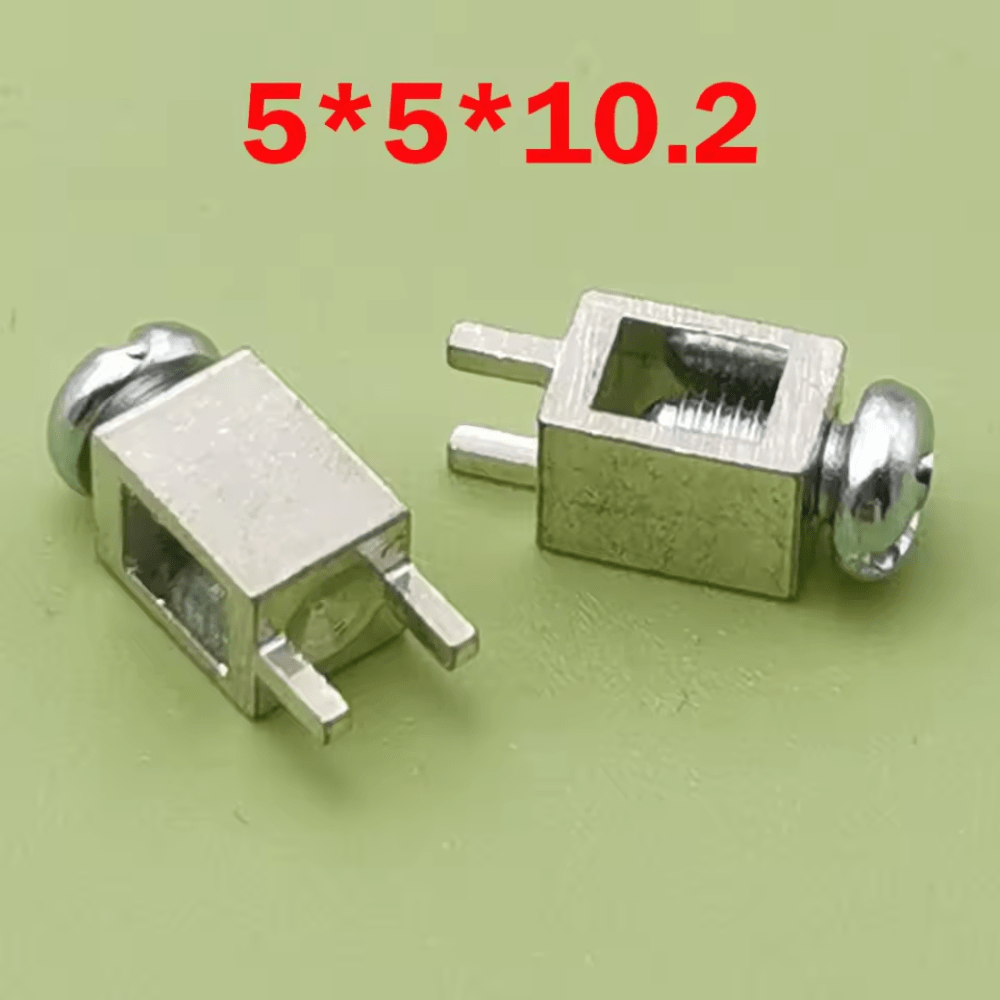

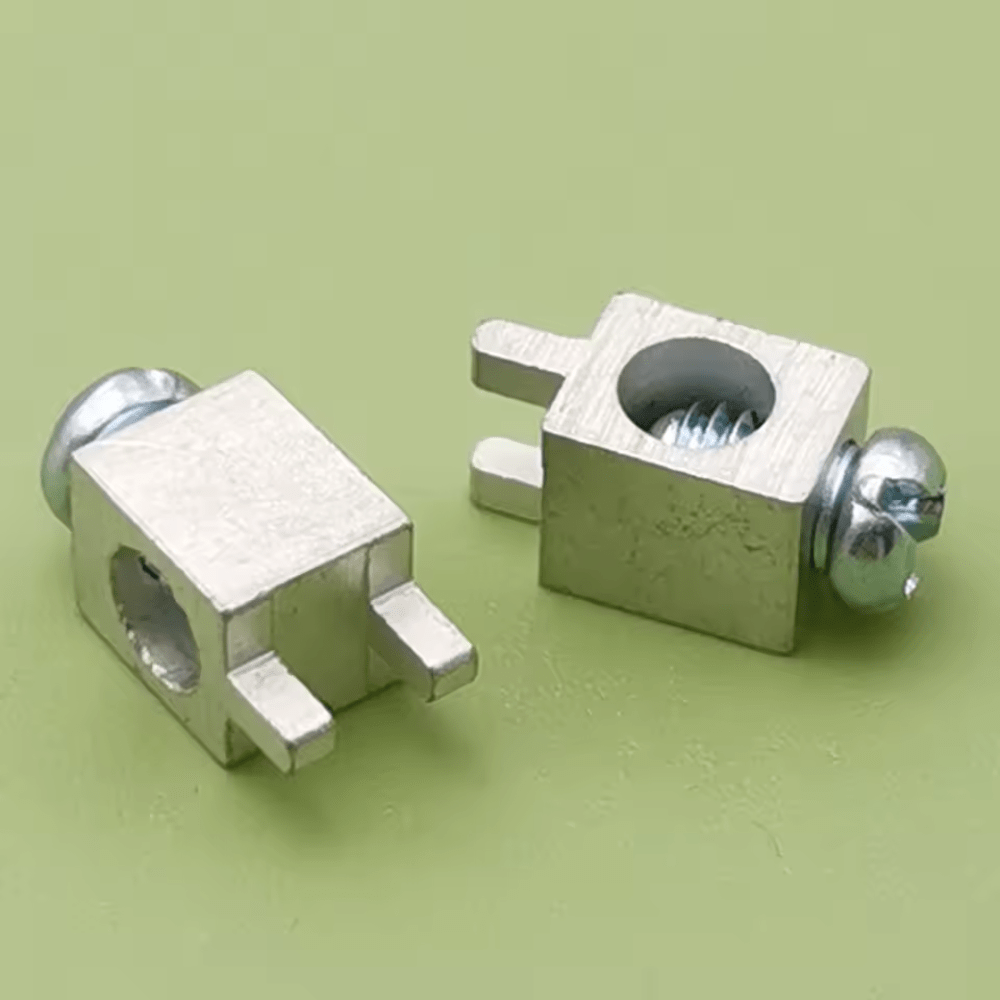

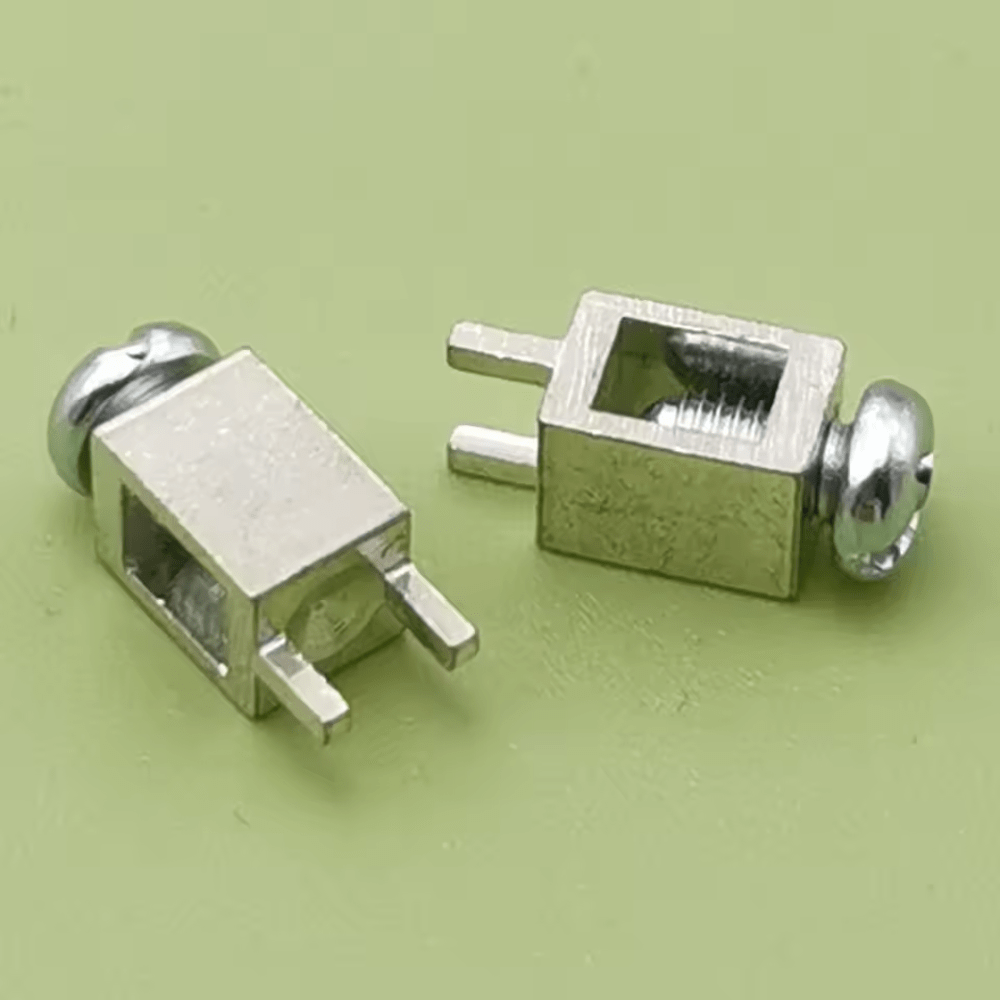

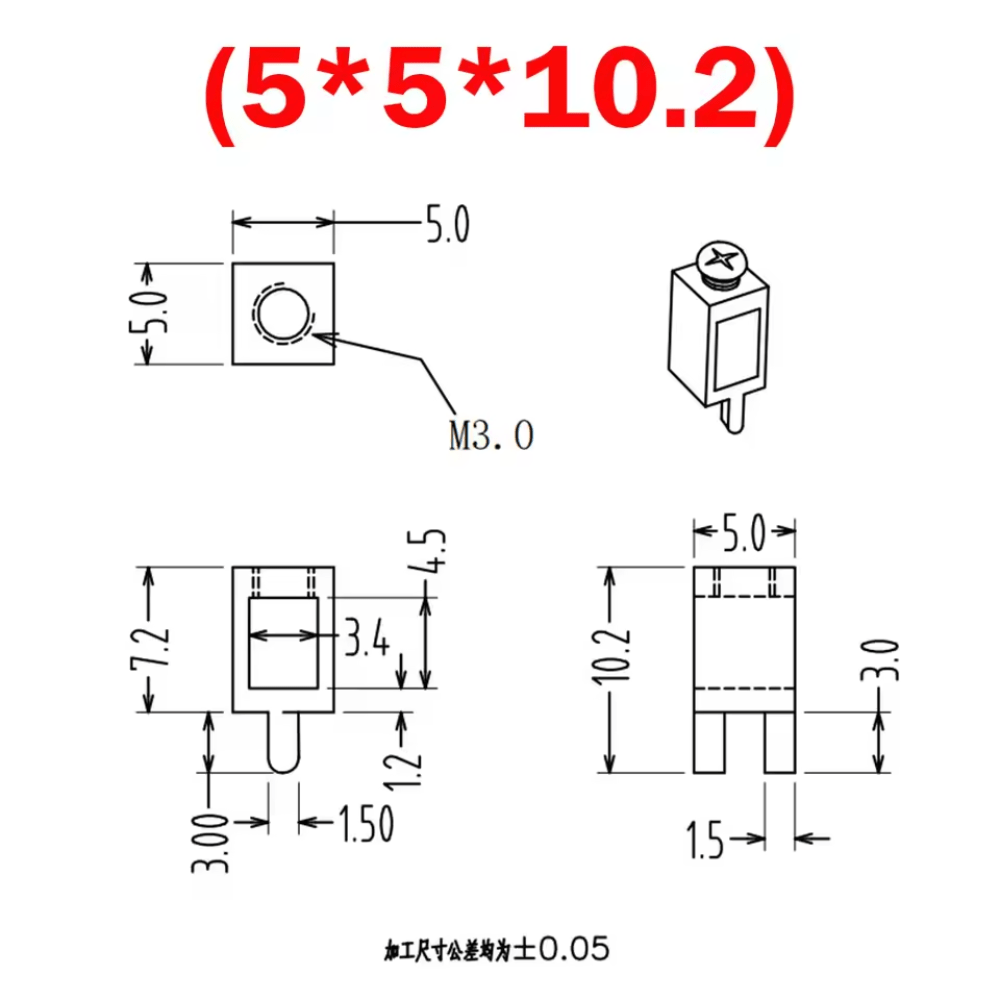

5x5x10.2mm PCB Terminal Block Double Feet Square Copper Terminal High Current 30A Solder Board Drive Power Wire Terminal Connector (Pack of 5)

Description

The Copper Square PCB Wiring Terminal is a precision-engineered SMD (Surface-Mount Device) terminal block designed for high-performance electrical connections on LED aluminum substrates. Its Double Groove-bottom copper square design ensures optimal thermal and electrical conductivity, making it an ideal solution for compact and heat-sensitive applications.

Key Features:

1. Material: High-purity copper with excellent conductivity for minimal power loss and reliable current transfer.
2. Design:
   1. Groove-bottom square terminal for stable and secure mounting on Groove aluminum or FR4 substrates.
   2. Surface-mount design (SMD) allows easy integration into automated PCB assembly lines.
3. Compatibility:

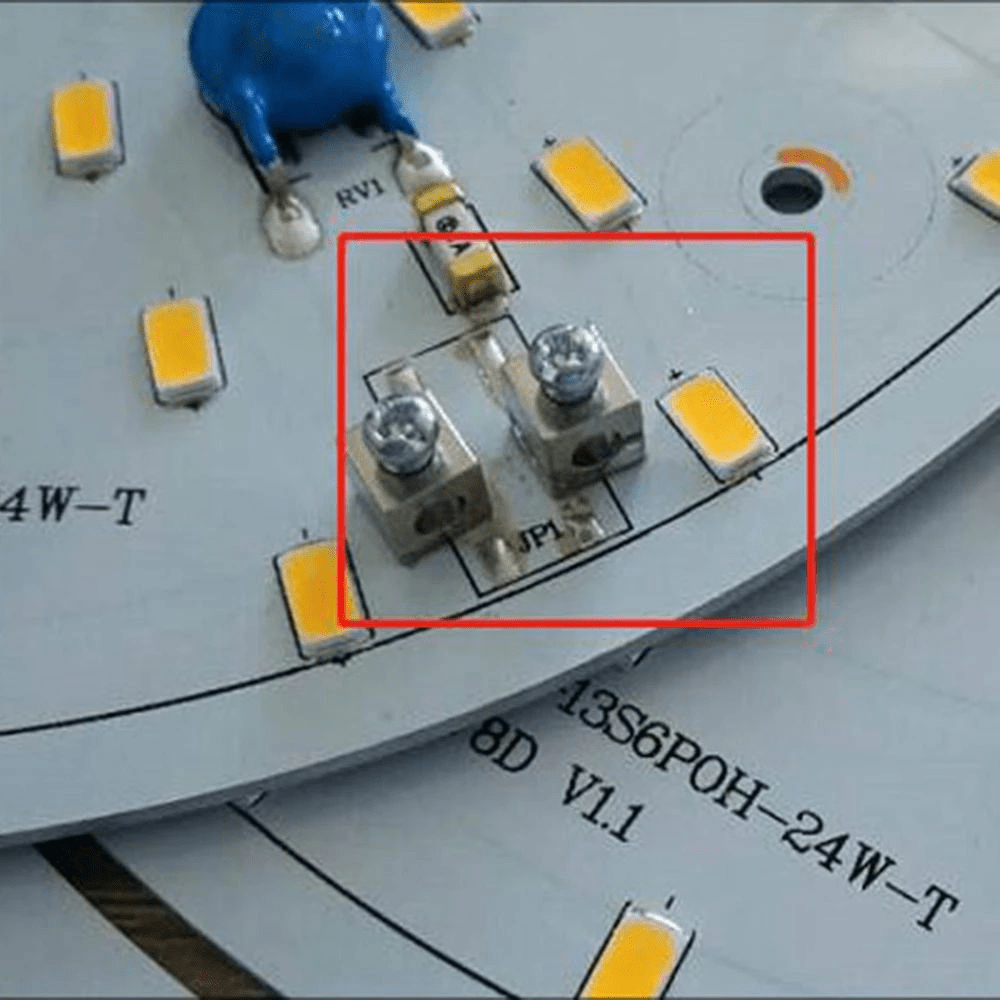

   1. Specially designed for use on LED aluminum PCBs, often used in high-power LED lighting systems.
   2. Compatible with reflow soldering processes.
4. Thermal Efficiency: The copper construction enhances heat dissipation from LED modules, improving system performance and longevity.
5. Durability: Corrosion-resistant plating (commonly tin or nickel) ensures long-term reliability even under demanding conditions.

Applications:

1. LED lighting modules and strips
2. Aluminium-based PCBs for thermal management
3. High-current PCB interconnects
4. Power distribution in compact electronics
5. Automotive LED systems

Package Includes:

1 x 5x5x10.2mm PCB Terminal Block Double Feet Square Copper Terminal High Current 30A Solder Board Drive Power Wire Terminal Connector (Pack of 5)
