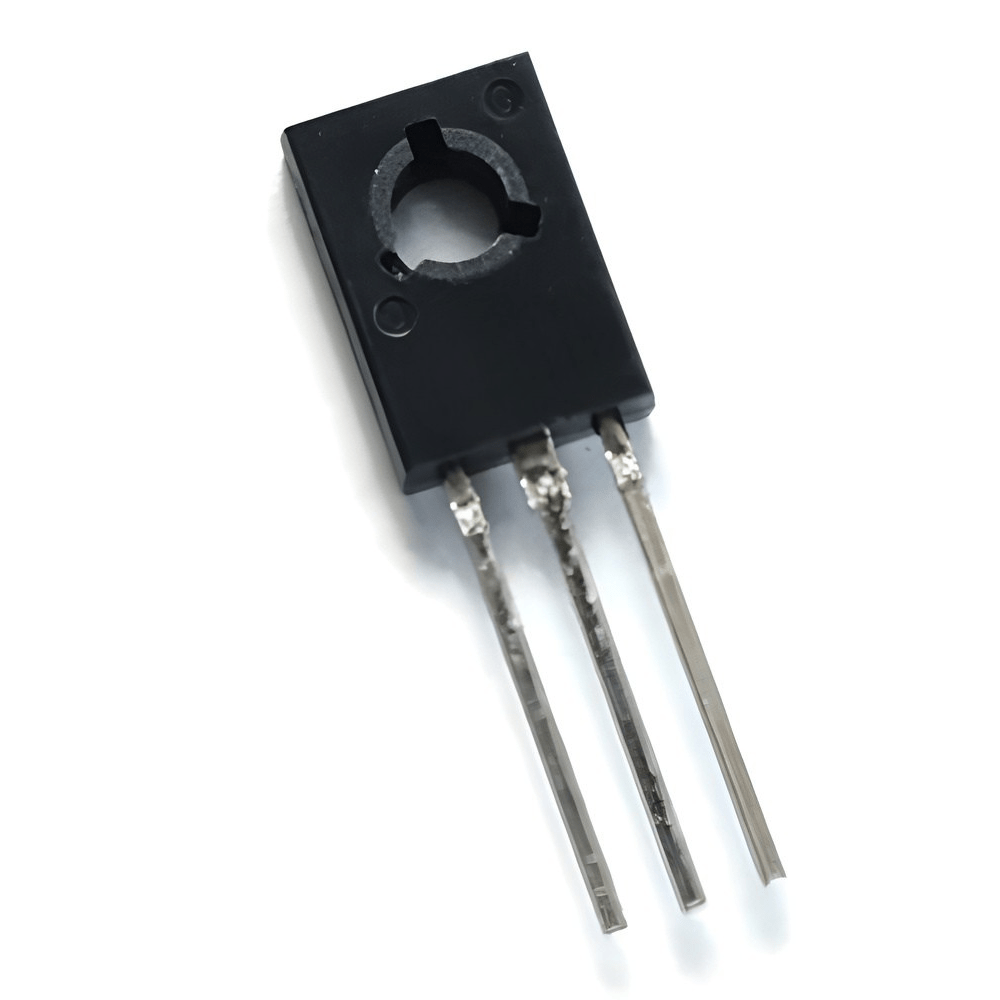

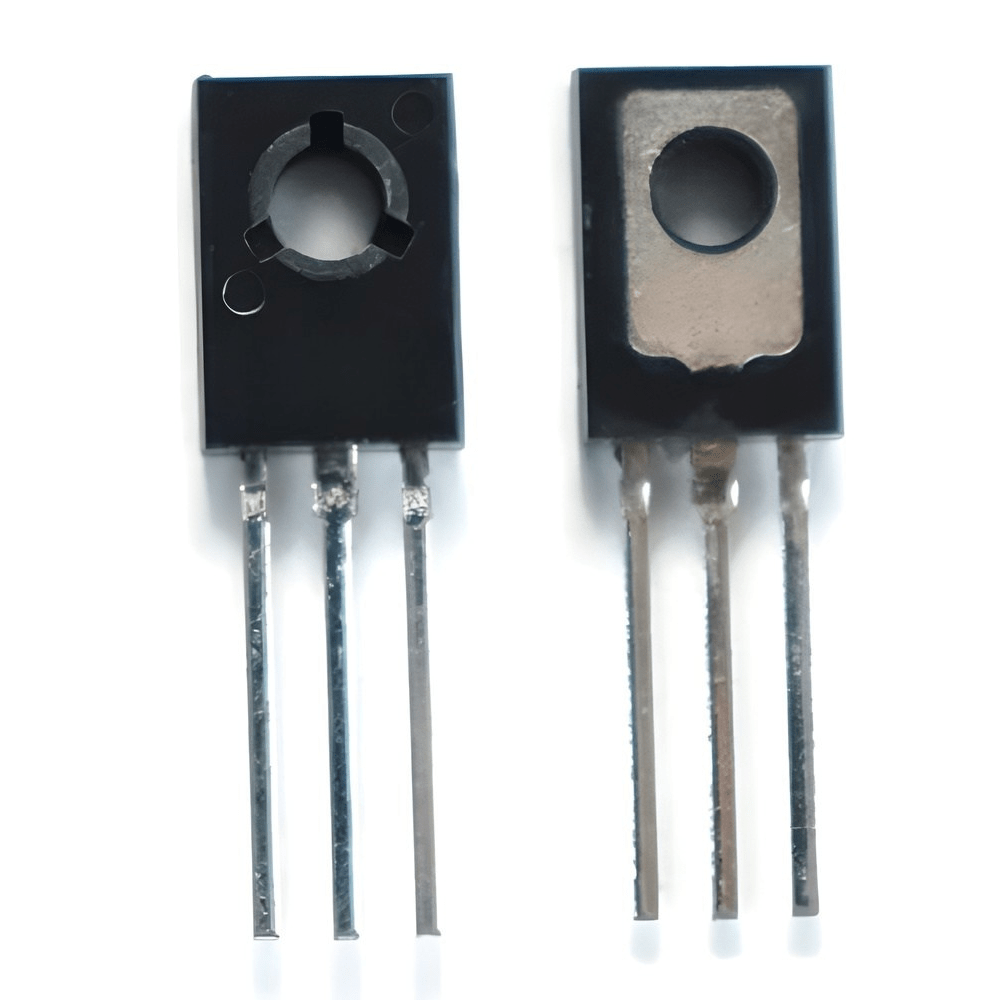

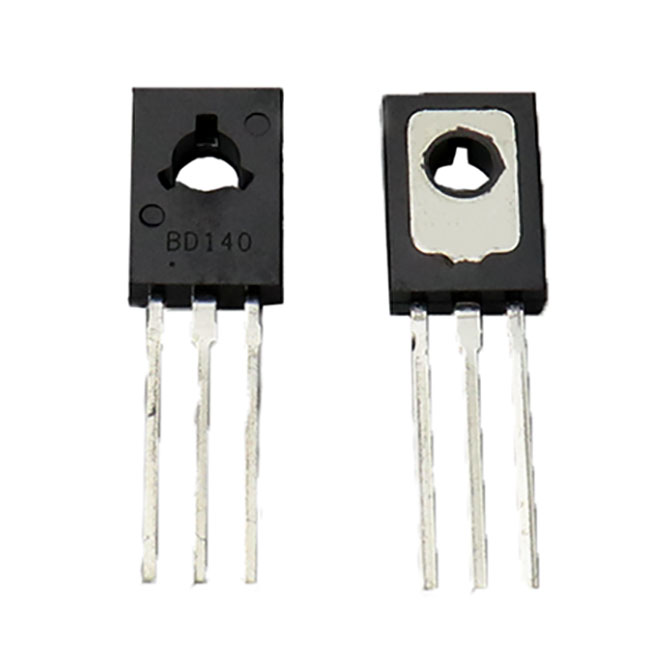

BD140 PNP Transistor (Pack of 2)

Description

BD140 is a famous PNP type transistor, it is used in many electronics circuits, this transistor can handle current up to 1.5A or 1500mA, due to which it can be used to drive loads up to 1.5A in electronic circuits, for example, high power LEDs, relays, motors and more, with these features it has lots of other features like its high collector-emitter and collector-base voltage that is 80 volts, make it an ideal transistor to use in circuits using 80 volts DC or below 80 volts. Moreover, the collector dissipation of this transistor is around 12.5 watts due to which it’s a good transistor to use in audio amplifier circuits. The minimum base voltage or saturation voltage of the transistor is -0.5V.

Applications:

• Audio Amplifiers
• Switching Loads under 1.5A
• Battery Chargers
• Power Supplies
• Motor Driver
• Darlington Pair

Datasheet available here.

Package include:

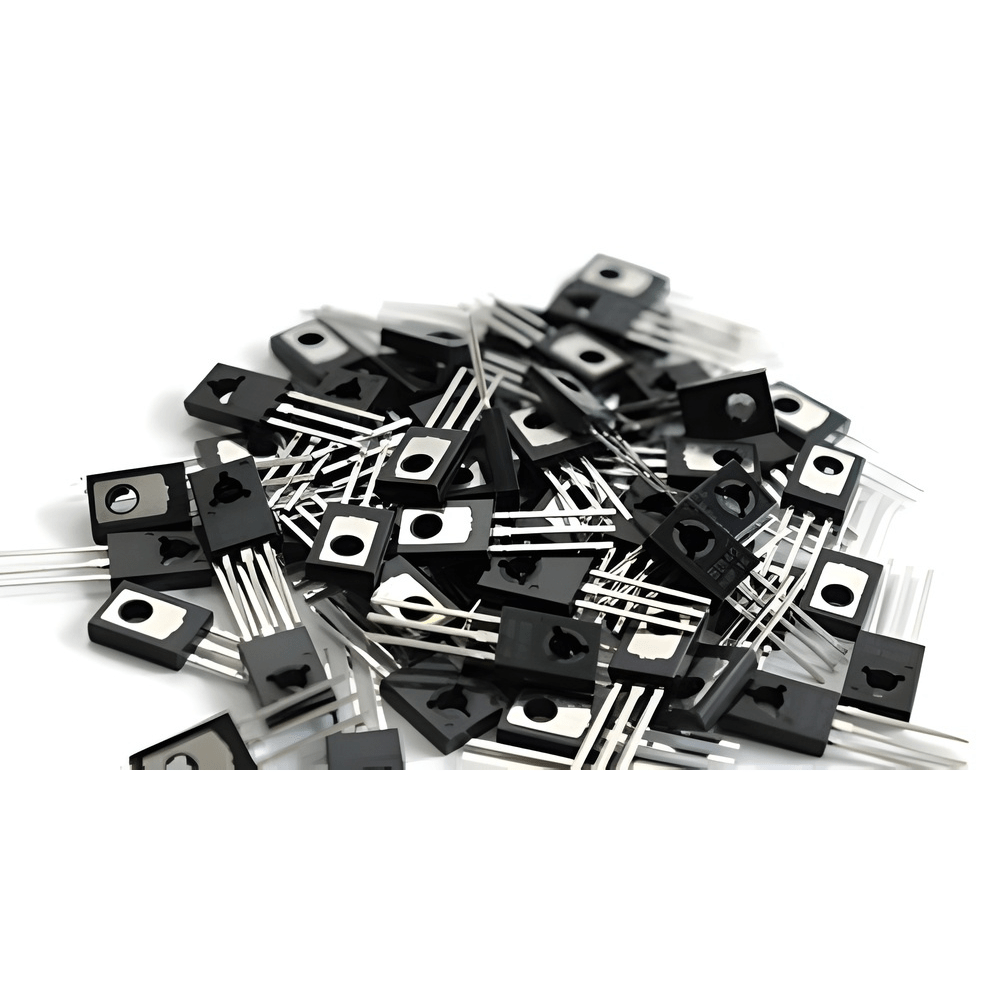

2 x BD140 PNP Transistor
