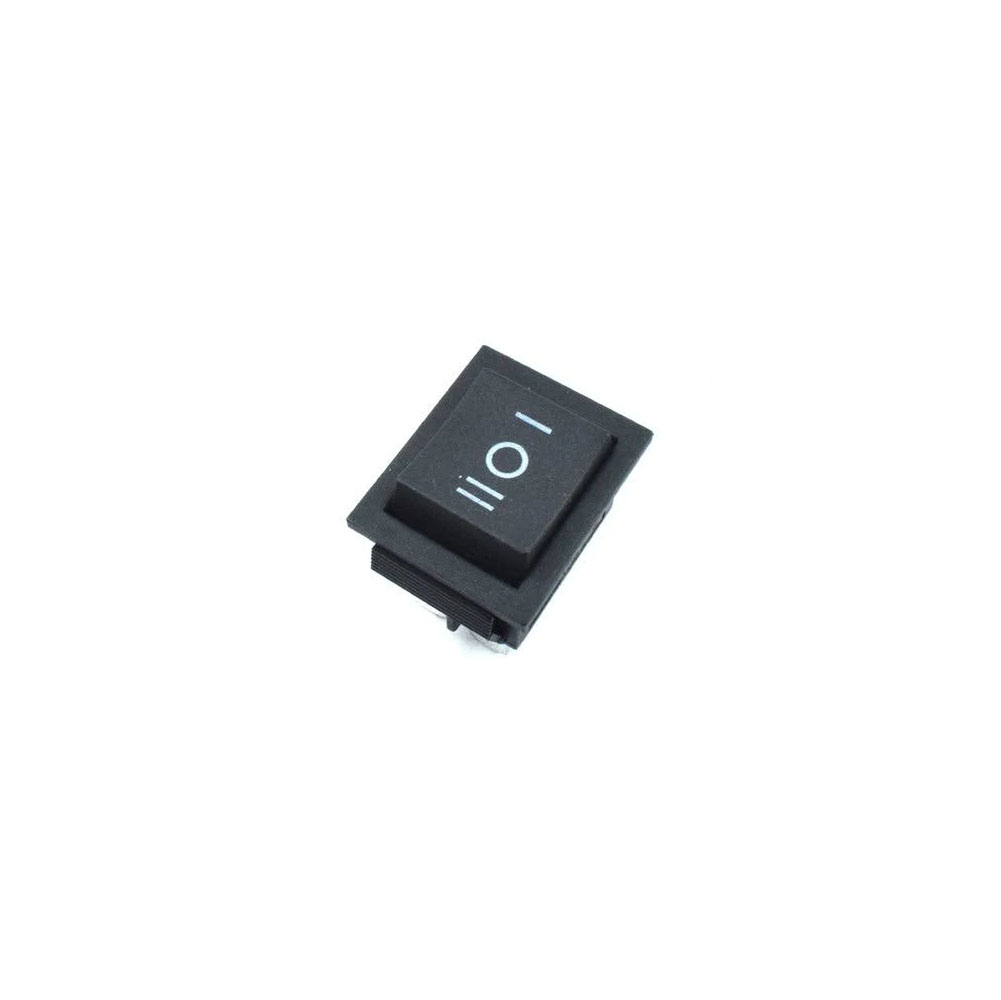

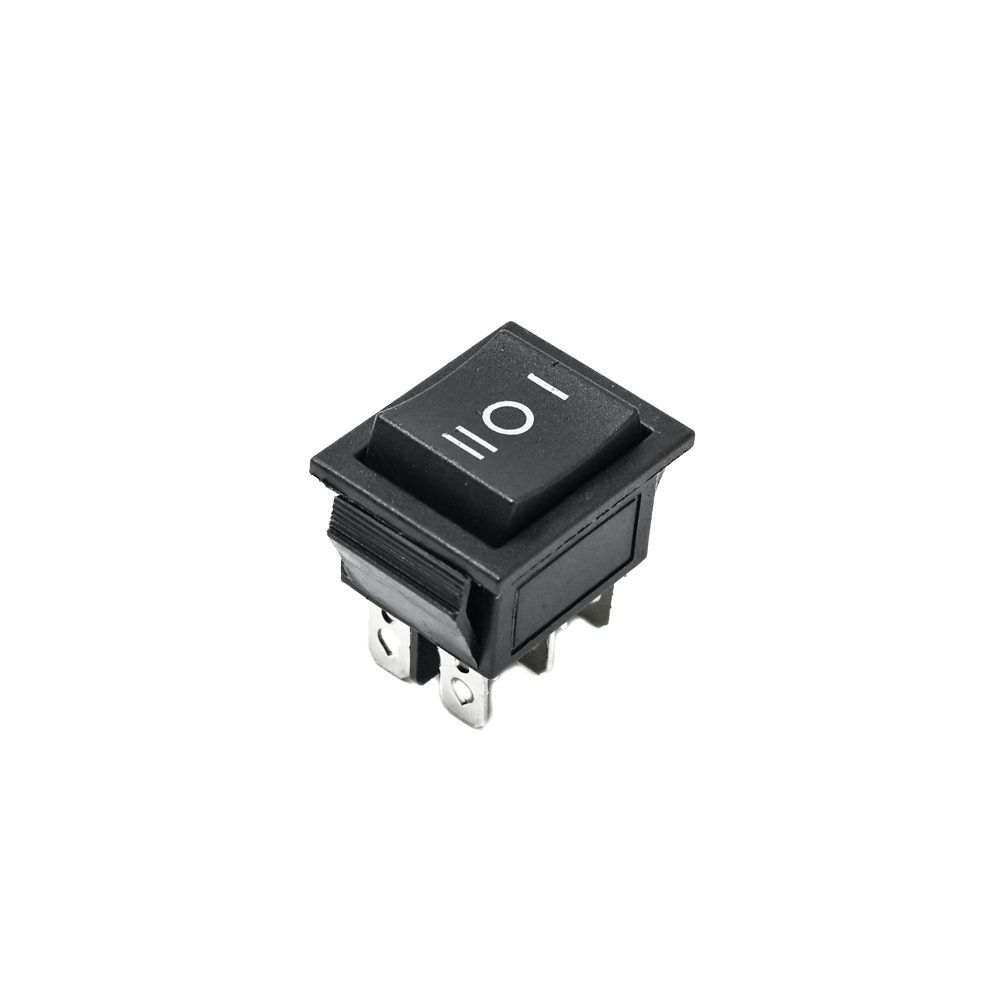

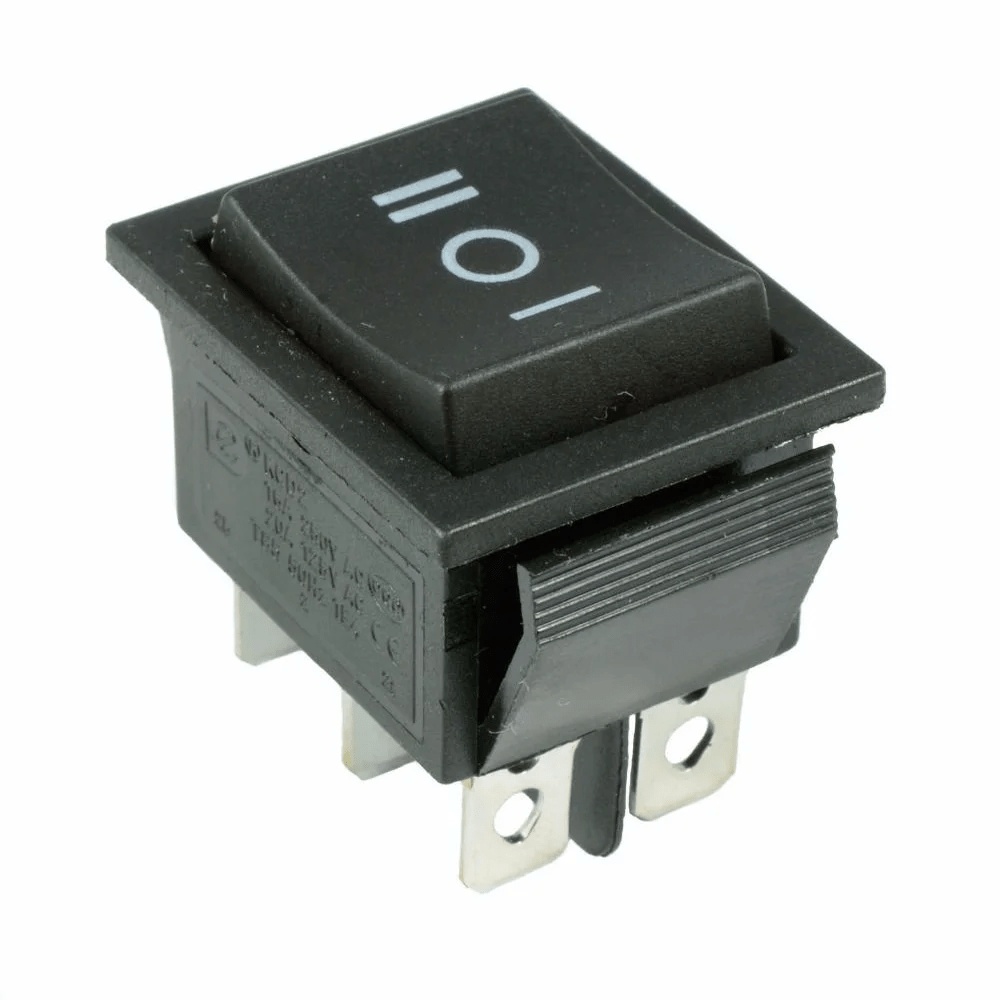

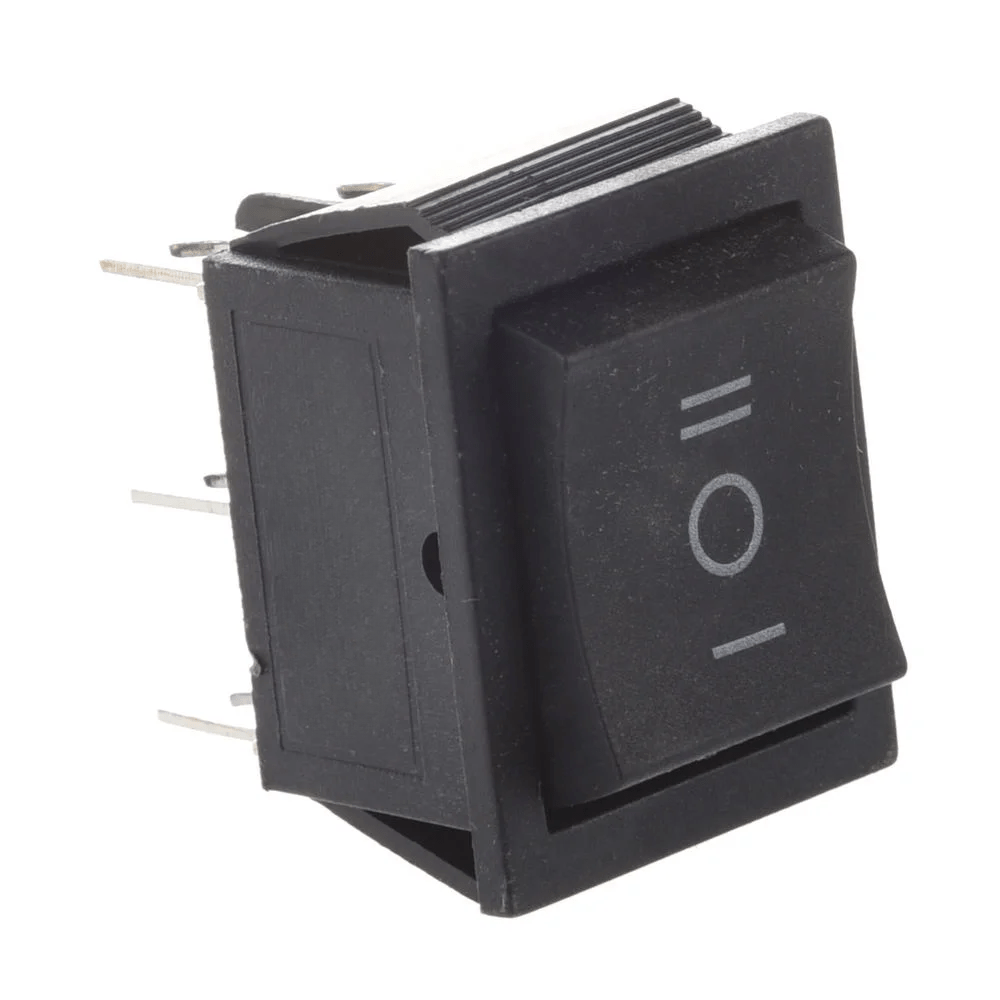

DPDT 16A 250V Latching Rocker Switch

Description

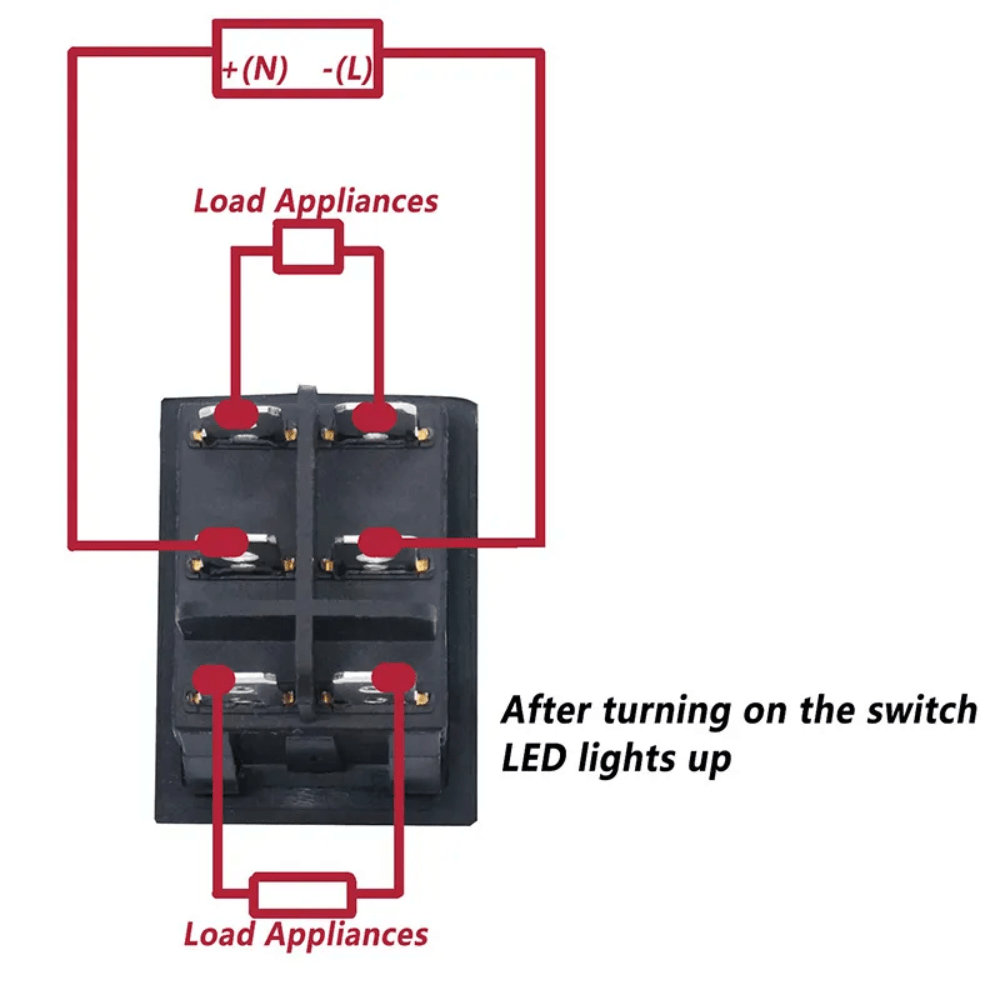

• DPDT Configuration: Controls two separate circuits simultaneously or manages polarity reversal for DC motor direction control (forward/backward).
• Latching Operation: Unlike momentary switches, this “lock action” switch remains in the selected position after being pressed.
• High Load Capacity: Rated for a maximum of 16A at 250V AC and 20A at 125V AC, making it suitable for demanding electrical loads.
• Snap-In Mounting: Features built-in tabs for easy panel installation without the need for screws or additional hardware.
• Durable Construction: Built with heat-resistant plastic and silver alloy contacts to ensure a long switching life of up to 100,000 cycles.

• Switching Mode: ON-OFF-ON (3-position) or ON-ON (2-position) variants.

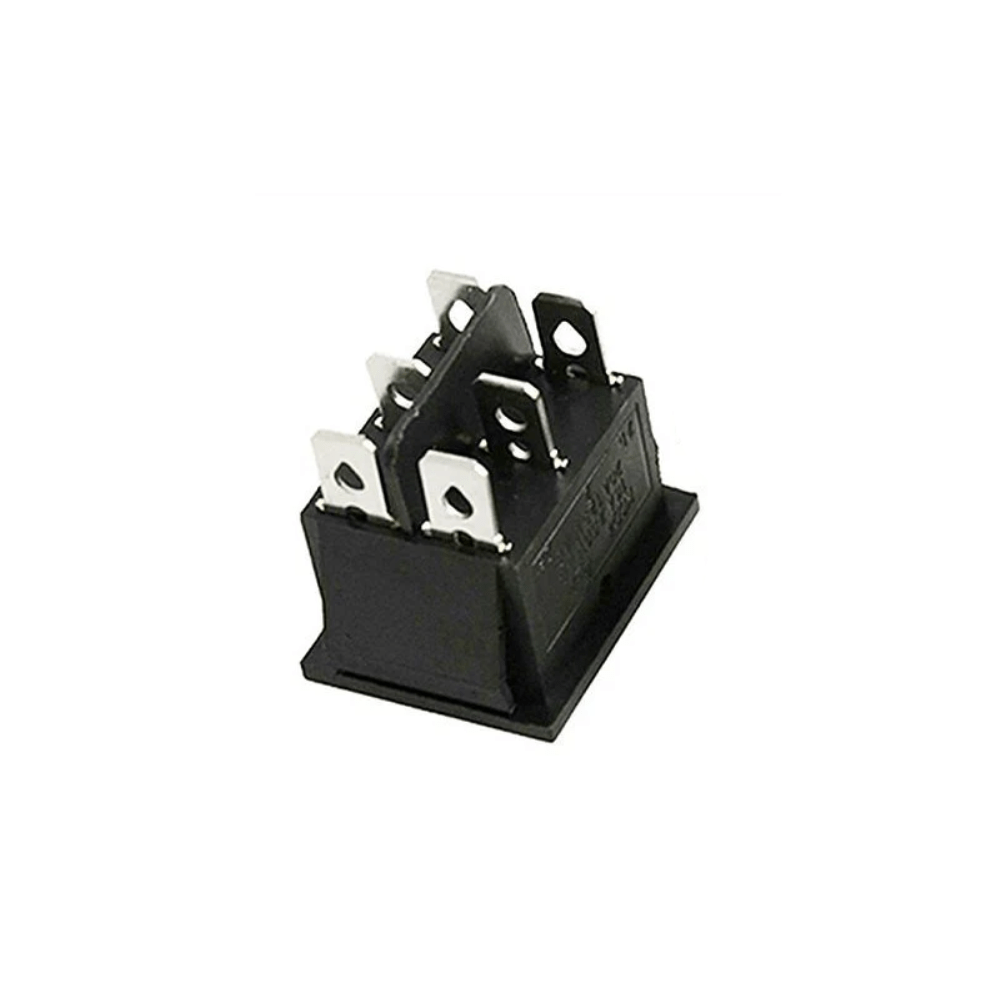

• Terminals: 6-pin male spade connectors (standard 6.3mm quick-connect).
• Panel Cutout Size: Standard dimensions are approximately 30mm x 22mm.
• Operating Temperature: Reliable performance from -20°C to +85°C.
• Material: Flame-retardant Polyamide (Nylon 66) housing.

• Industrial Machinery: Motor direction control and power isolation.
• Automotive & Marine: Controlling winches, hoists, and battery-operated equipment.
• Small Appliances: Water dispensers, medical instrumentation, and computer peripherals.
• DIY Projects: Robotics and custom automation panels requiring robust power switching.

Package Includes:

1 x 16A 250V AC DPDT ON-OFF-ON Rocker Switch
