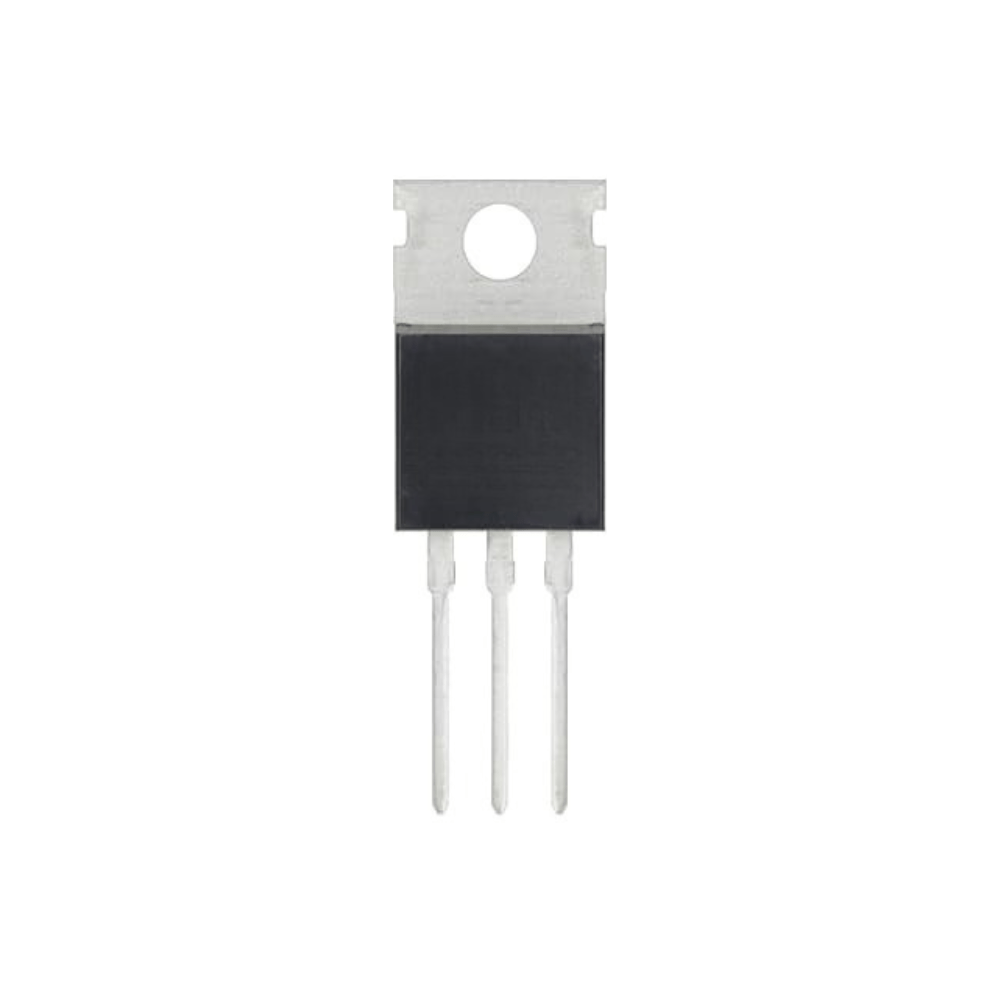

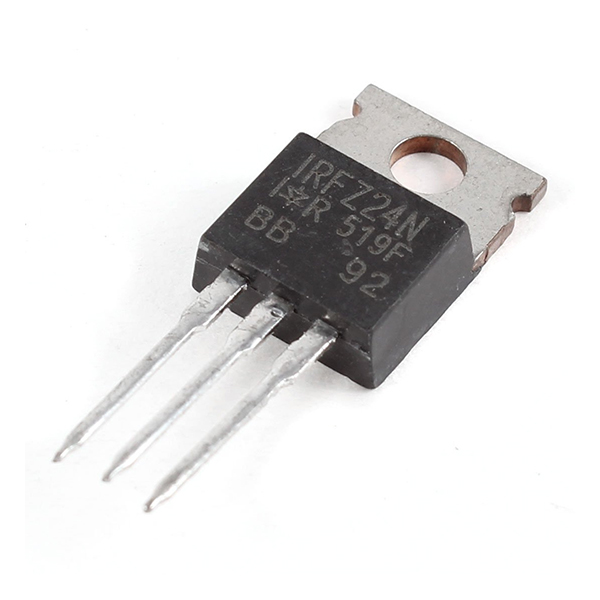

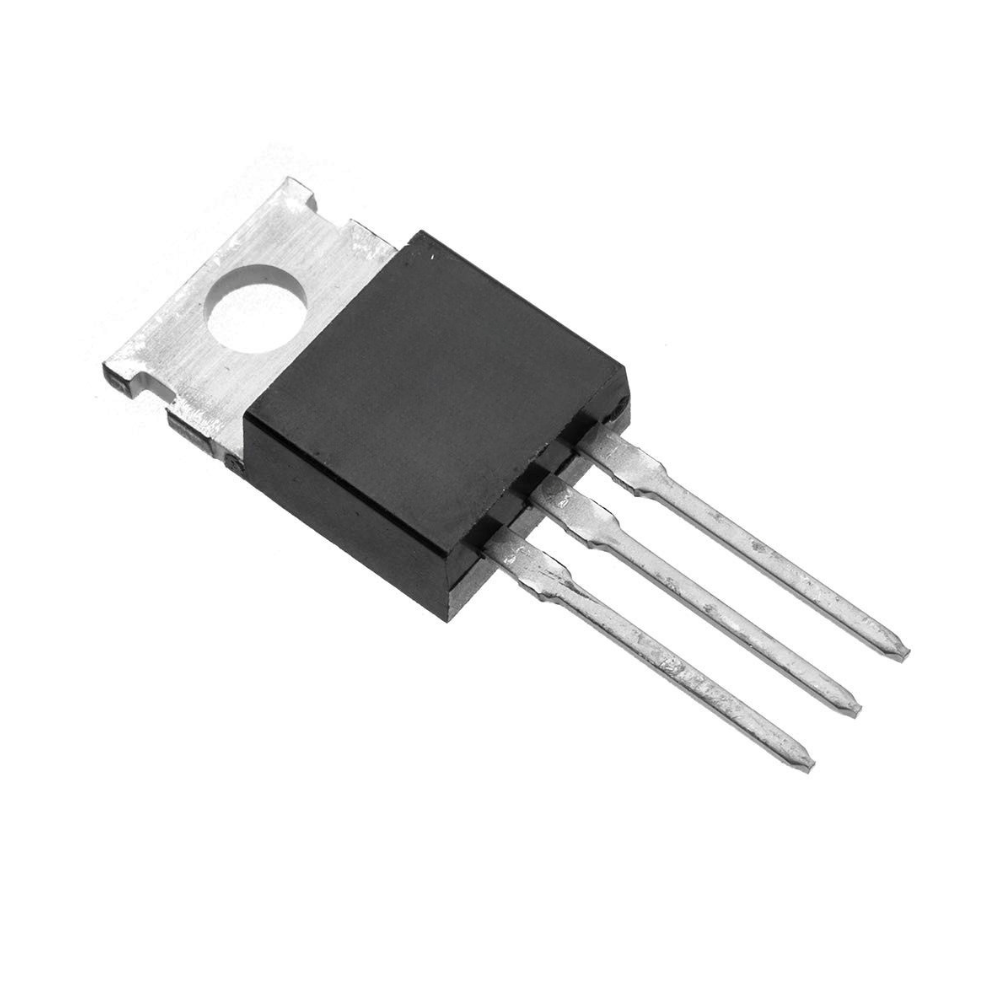

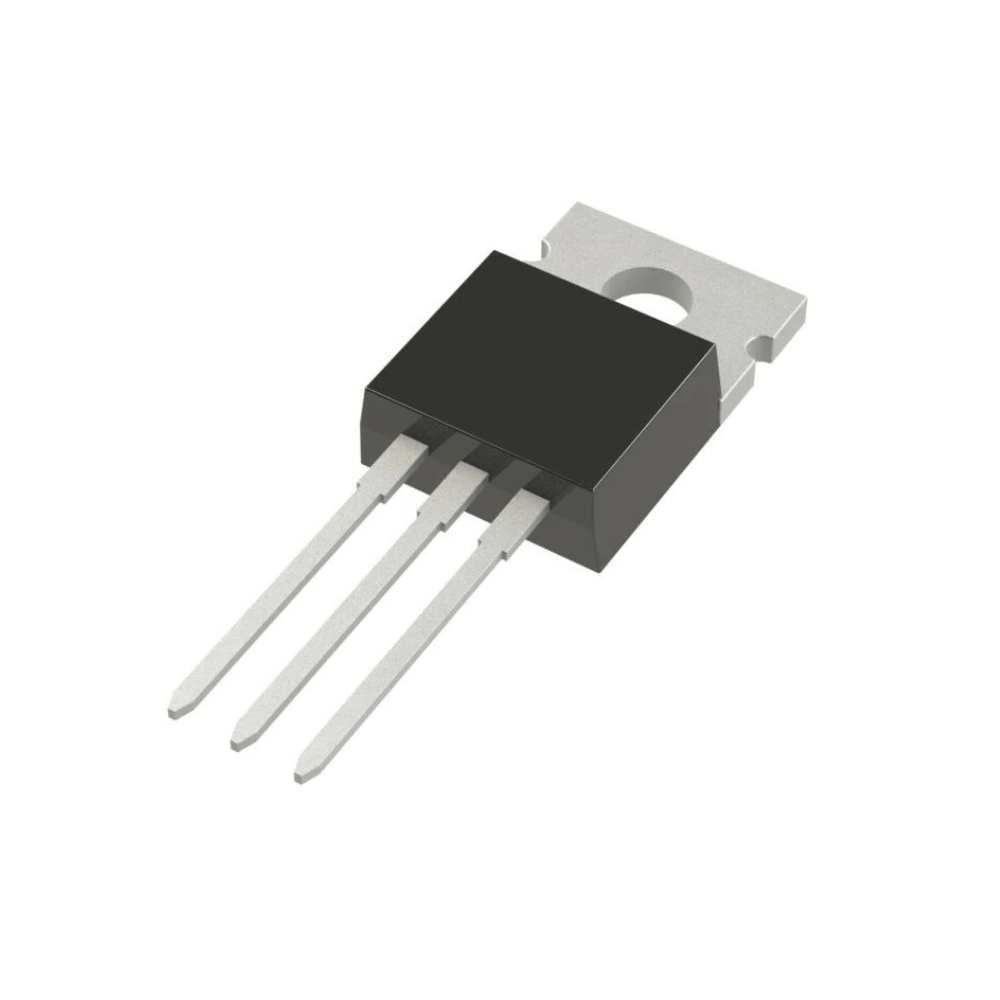

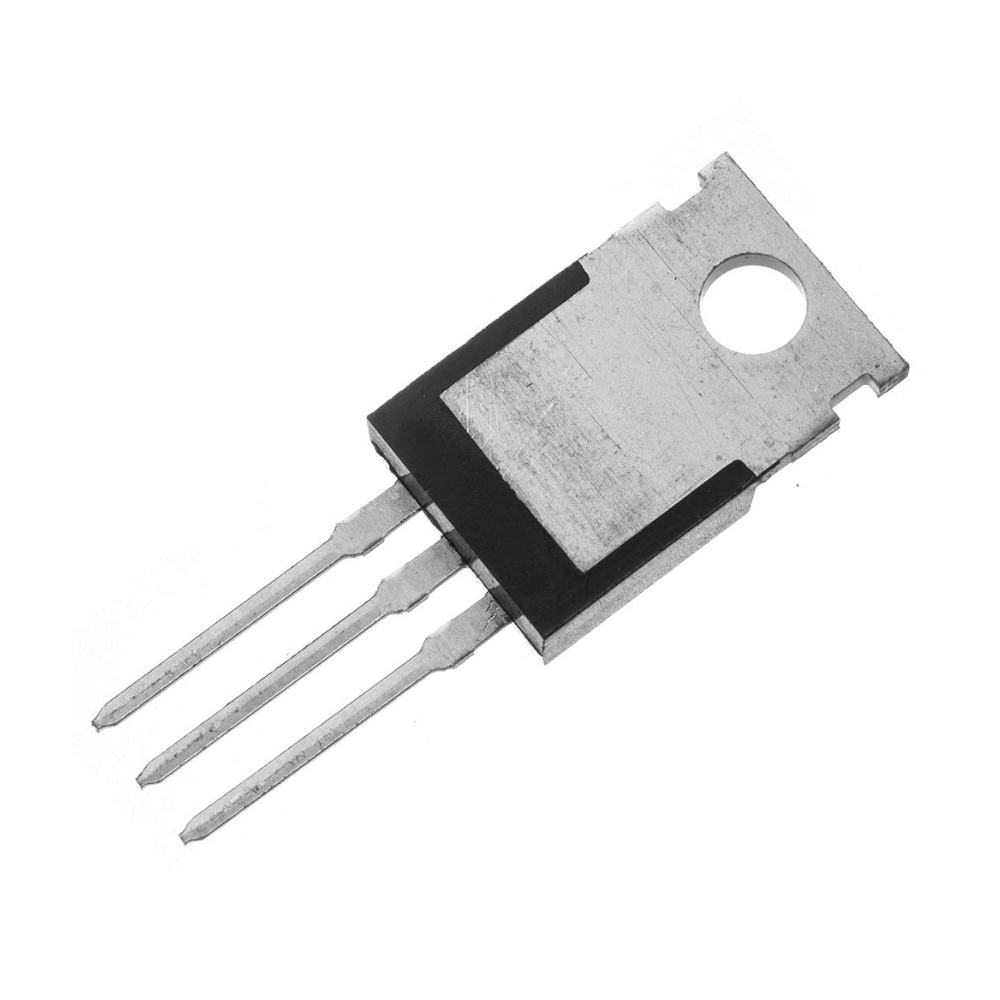

IRFZ24N MOSFET

Description

Charactiristics IRFZ24N MOSFET transistor

• Type: n-channel
• Drain-to-Source Breakdown Voltage: 55 V
• Gate-to-Source Voltage, max: ±20 V
• Drain-Source On-State Resistance, max: 70.000 Ohm
• Continuous Drain Current: 17 A
• Total Gate Charge: 13.3 nC
• Power Dissipation: 45 W
• Package: TO-220AB

Pin Configuration (Pinout)

IRFZ24N Replacement and Equivalent transistors

You can replace IRFZ24N with IRF1010E, IRF1010EZ, IRF1010N, IRF1010Z, IRF1018E, IRF1310N, IRF1405, IRF1405Z, IRF1407, IRF1607, IRF2805, IRF2807, IRF2807Z, IRF2907Z, IRF3007, IRF3205, IRF3205Z, IRF3305, IRF3315, IRF3415, IRF3710, IRF3710Z, IRF3710ZG, IRF3805, IRF3808, IRF540, IRF540N, IRF540Z, IRF640, IRF8010, IRFB260N, IRFB3006, IRFB3006G, IRFB3077, IRFB3077G, IRFB3206, IRFB3206G, IRFB3207, IRFB3207Z, IRFB3207ZG, IRFB3256, IRFB3306, IRFB3306G, IRFB3307, IRFB3307Z, IRFB3307ZG, IRFB3607, IRFB3607G, IRFB3806, IRFB38N20D, IRFB4110, IRFB4110G, IRFB4115, IRFB4115G, IRFB4127, IRFB41N15D, IRFB4227, IRFB4229, IRFB4233, IRFB42N20D, IRFB4310, IRFB4310G, IRFB4310Z, IRFB4310ZG, IRFB4321, IRFB4321G, IRFB4332, IRFB4410, IRFB4410Z, IRFB4410ZG, IRFB4510, IRFB4510G, IRFB4610, IRFB4615, IRFB4710, IRFB52N15D, IRFB5615, IRFB59N10D, IRFB61N15D, IRFI4410ZG, IRFZ24, IRFZ34, IRFZ34N, IRFZ40, IRFZ44, IRFZ44E, IRFZ44N, IRFZ44R, IRFZ44V, IRFZ44VZ, IRFZ44Z, IRFZ46N, IRFZ46Z, IRFZ48, IRFZ48N, IRFZ48R, IRFZ48V, IRFZ48Z

Datasheet available
