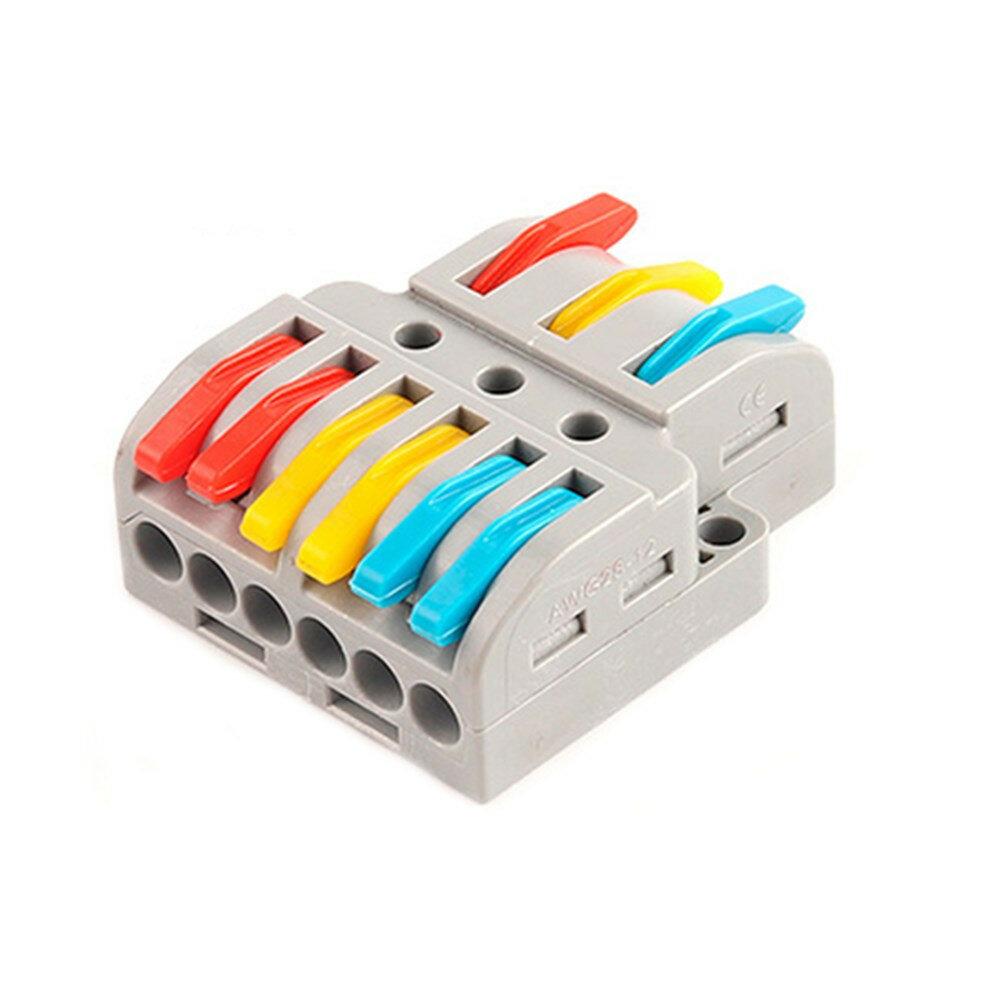

LT-633(SPL-63) Stationary, Type Quick Connection, Terminal

Description

It can be used to create the two-wire connection from two pair connections as shown in below Picture.

PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power. And the Stripping Length of the connector is 11-12 mm

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 3:6 -Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x LT-633(SPL-63) Stationary, Type Quick Connection, Terminal
