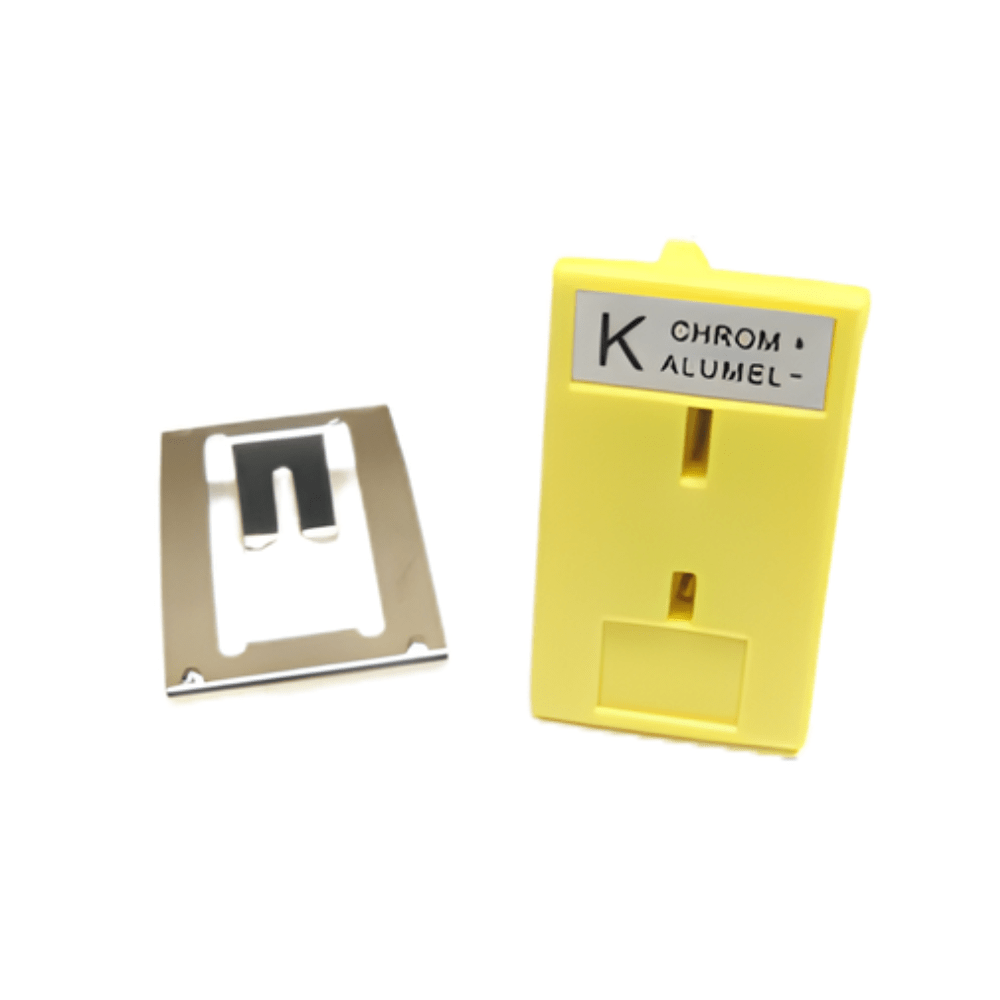

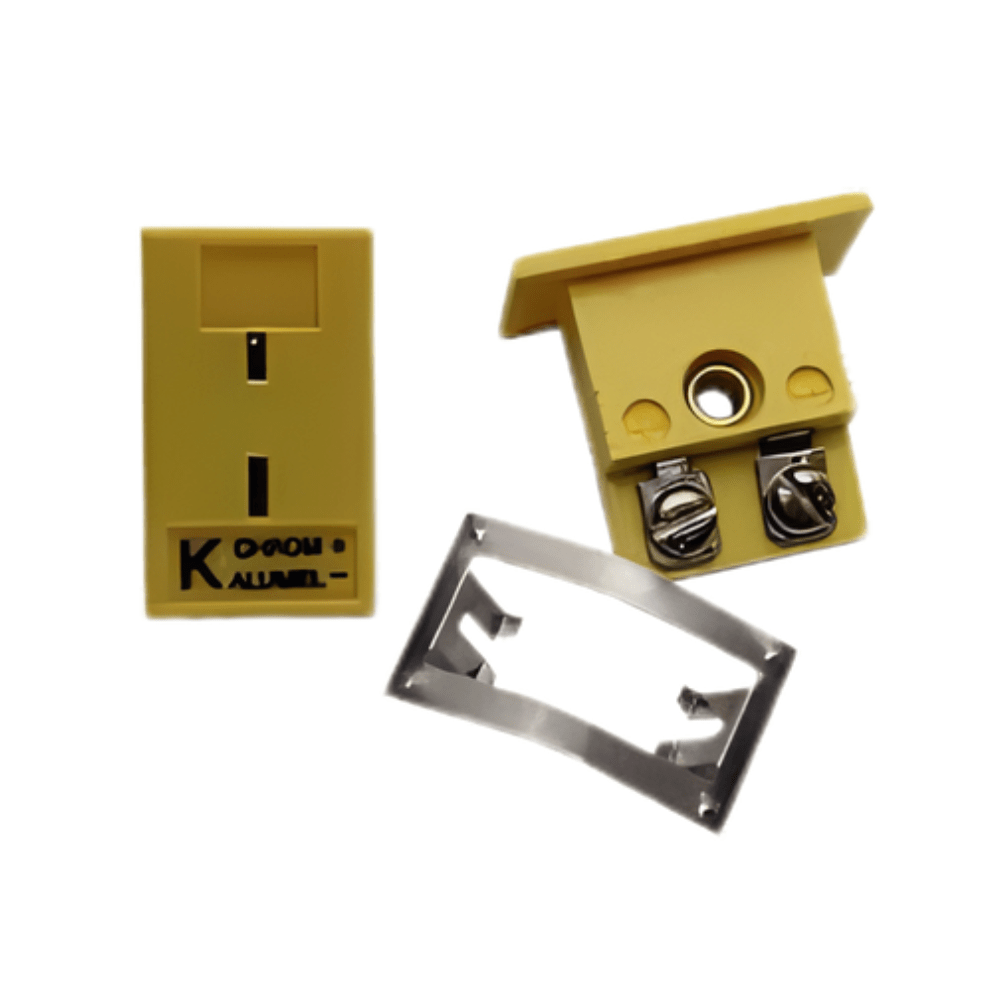

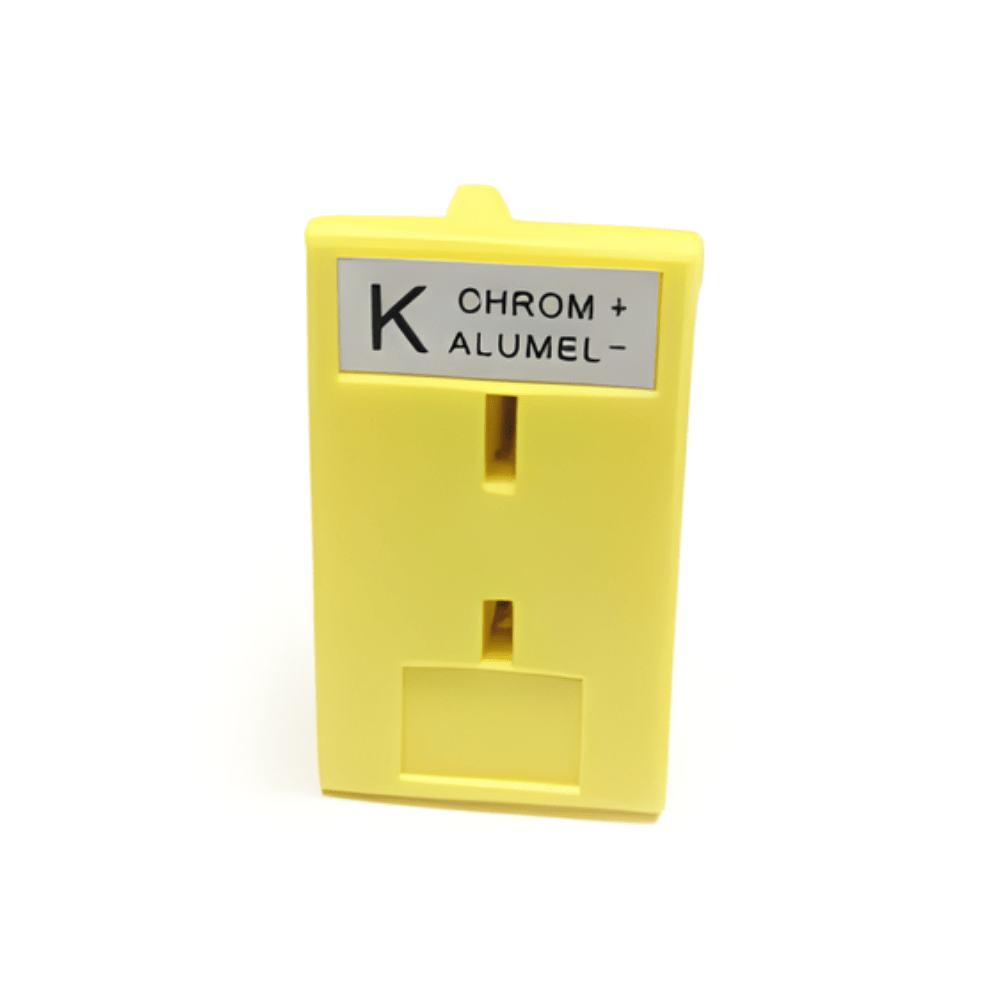

Miniature K-type Female Thermocouple Panel Mount Socket

These sockets are characterized by their compact size (“miniature” or “mini”), making them ideal for high-density panel applications where space is limited. The “panel mount” design includes features such as screw holes or a snap-in mechanism, allowing the connector body to be rigidly fixed to a bulkhead or enclosure face, providing a robust termination point. The female contacts are polarized with flat pins of different widths to ensure that the positive (Chromel, typically yellow) and negative (Alumel, typically red) wires of the thermocouple extension cable are connected correctly, which is vital because thermocouples generate a polarity-dependent voltage signal. Ultimately, the miniature K-type panel mount socket serves as a reliable and color-coded gateway for transmitting a highly accurate temperature signal from the process environment to the control or data acquisition system.
