Model T Type Electrical Wiring Quick Connector Transparent-Blue

Description

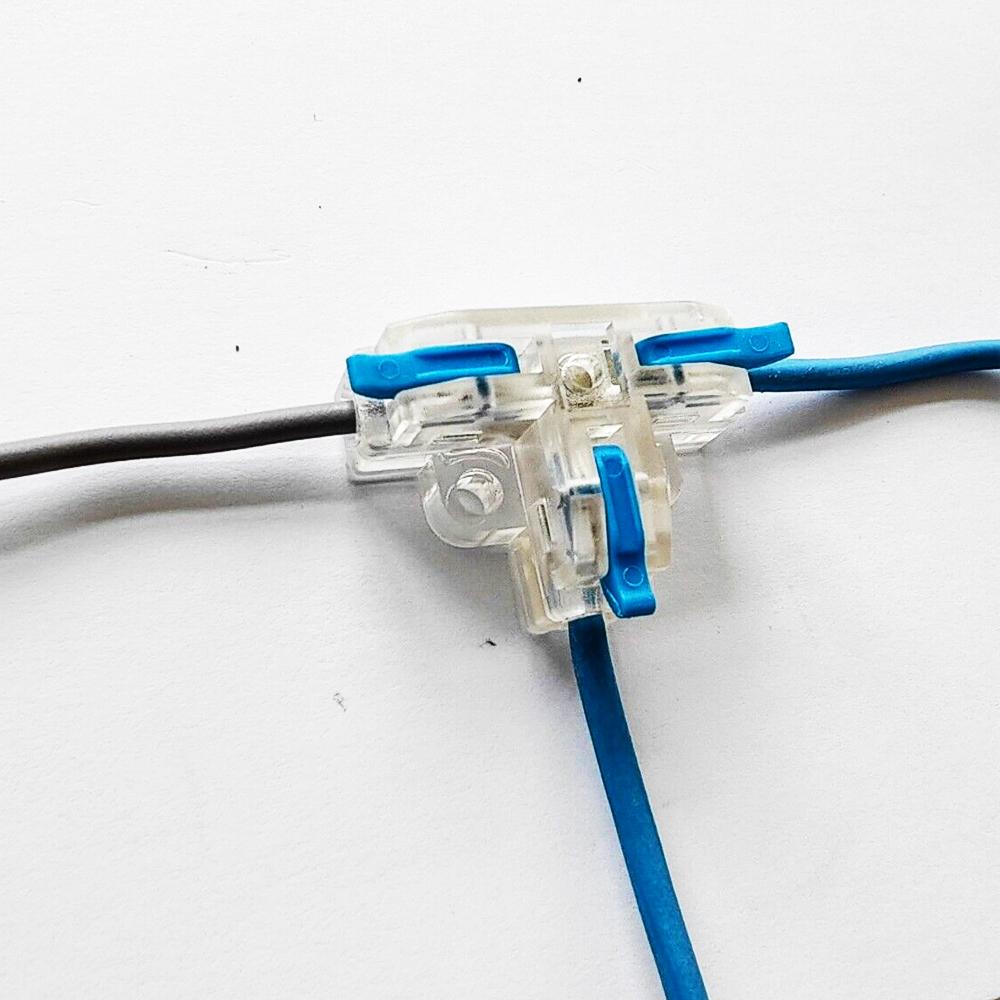

The conductor of the lever wire nut connectors is made of tinned pure copper which ensures high conductivity. The shell is made of nylon PA66 material, which is flame retardant, insulating , anti-corrosion, anti-aging and against electrical shock. These lever wire nut connectors can connect any combination of solid, stranded, and flexible copper wires from 28-12AWG. Suitable for hardwire 0.08-4.0mm²/ AWG28-12, soft wire 0.08-2.5mm²/AWG28-14. These quick wiring cable connectors are perfect for circuits that you may need to replace or splice into. Don’t need to solder and de-solder into the circuits, if the wires need to be changed, all you need to do is just flip the little lever up, pull the wires out and replace. Strip the end of the wire (9~10mm) and push the clips slightly to the top 90°, then insert the cables and switch off the switch, simple but efficient.

*Note: Connector colour may be changed according to the availability of the product

Packing List:

1 x T Tap 3 Wire Connectors Fast Universal Compact Conductor Wiring Cable Electrical Quick Connector Push-in LED Terminal Block Can Rail
