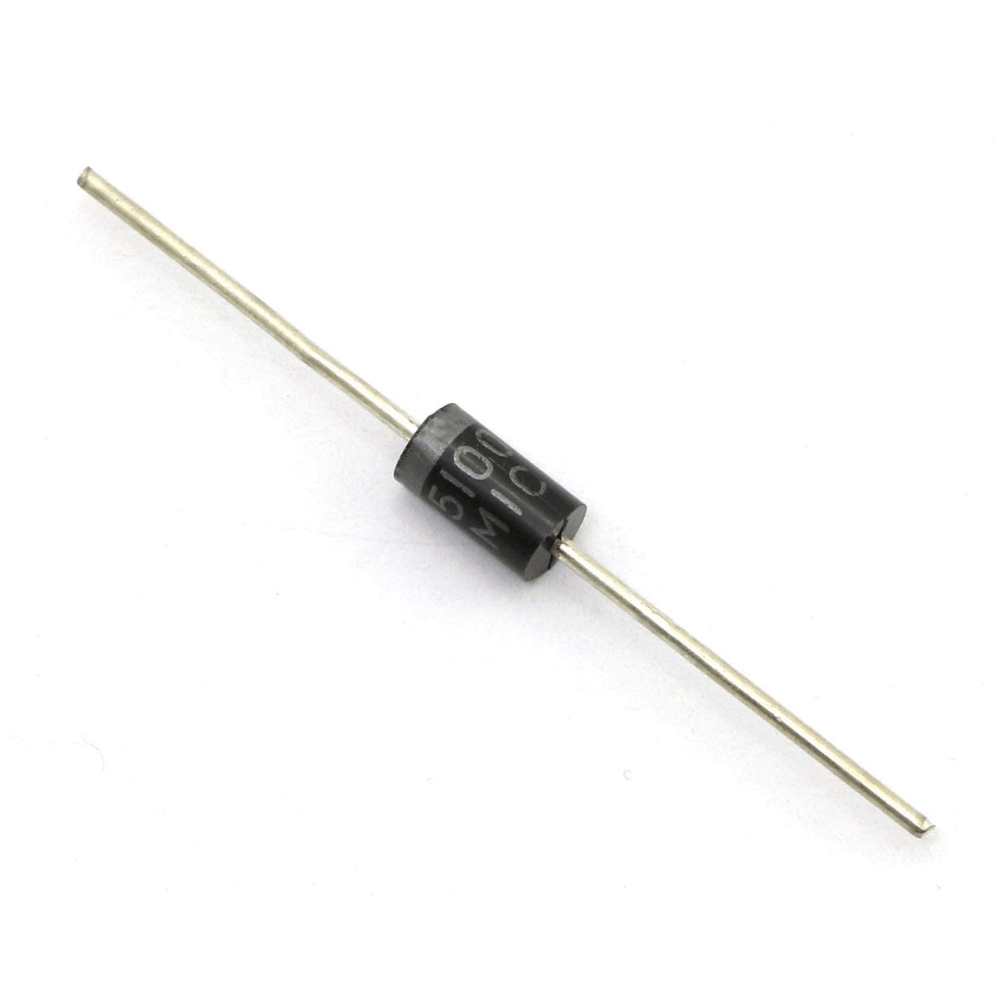

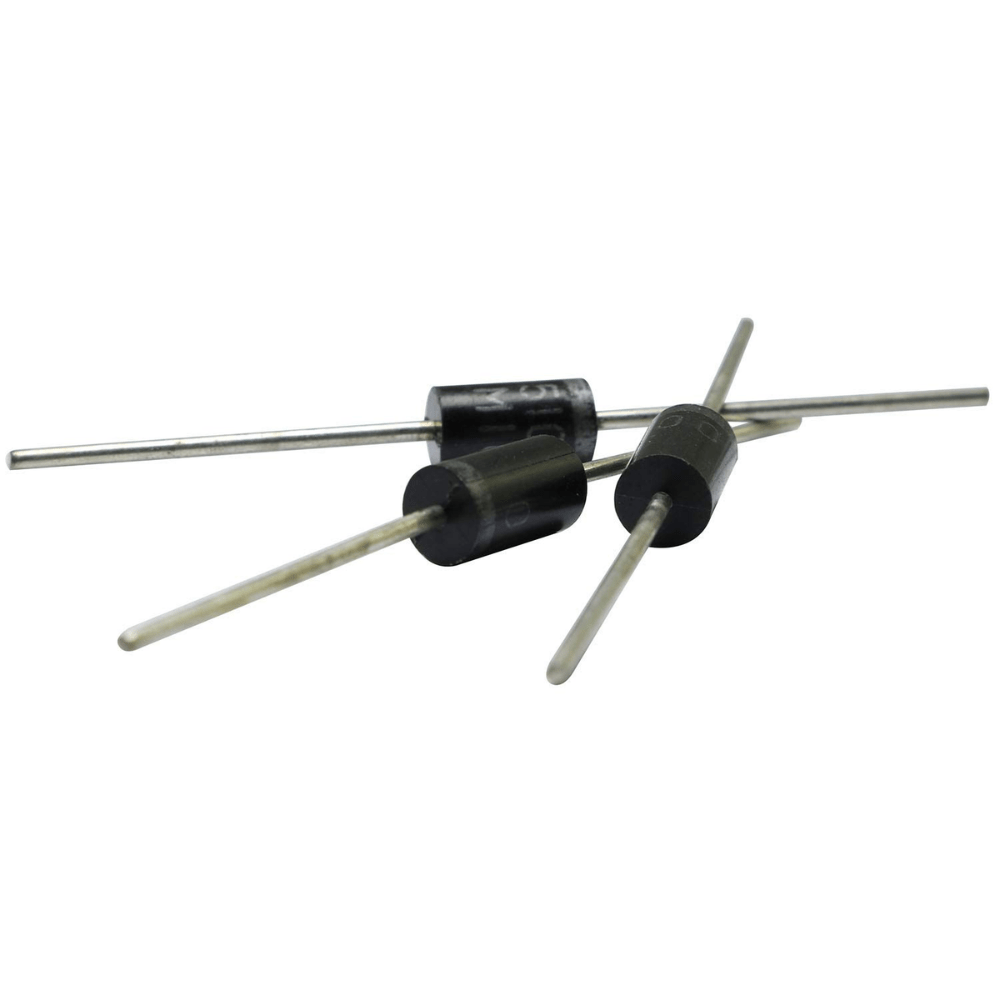

SB5100-JSCJ-100V 5A DO-27 Schottky Diode

Rated 3.50 out of 5 based on 2 customer ratings

SKU: NoSKU

True

In Stock

Add to cart

Add to wishlist

Sold By:

Adros Systems

Rated 3.65 out of 5 based on 40 customer ratings

This product has been added to 8 people'scarts.

Description

SB5100-JSCJ-100V 5A DO-27 Schottky Diodes ROHSThe SB5100 is a high-performance Schottky Barrier Rectifier Diode housed in a through-hole DO-27 (DO-201AD) plastic package. It features a 100V maximum repetitive peak reverse voltage (\(V_{RRM}\)) and a 5A maximum average forward rectified current (\(I_{F(AV)}\)), making it highly suitable for high-efficiency power management applications.

Specifications Chart:

5.0 Ampere / DO-27(DO-201AD)
TYPE	I_(AV)	V_RRM	I_FSM	V_FM		I _RM @ V_RRM	Pafckage Outline
	I_(AV)	@I_RM	I_FSM	V_FM	I_(AV)	T_A=25ºC
	A	V	A	V	A	mA
SB520	5.0	20	120	0.55	5.0	0.5	DO-27
SB540	5.0	40	120	0.55	5.0	0.5	DO-27
SB560	5.0	60	120	0.70	5.0	0.5	DO-27
SB580	5.0	80	120	0.85	5.0	0.05	DO-27
SB5100	5.0	100	120	0.85	5.0	0.05	DO-27
SB5150	5.0	150	120	0.95	5.0	0.05	DO-27
SB5200	5.0	200	120	0.95	5.0	0.05	DO-27
