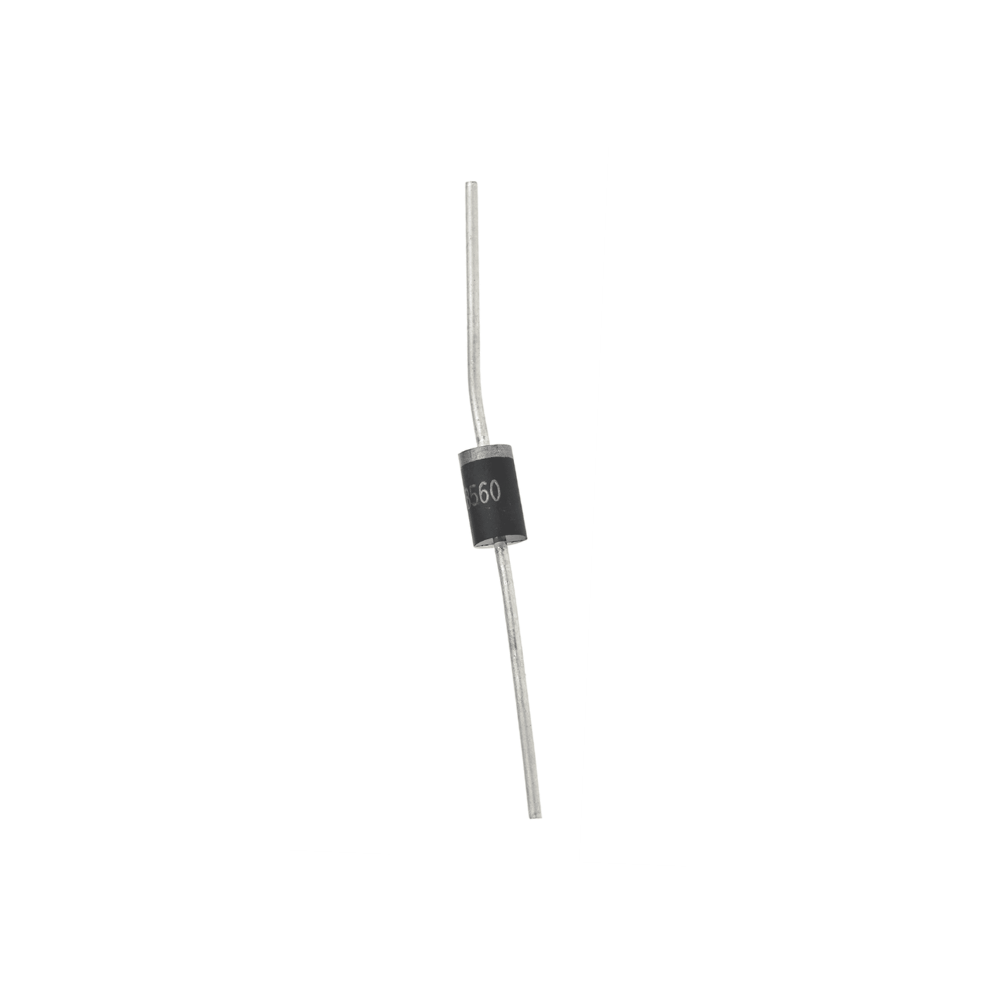

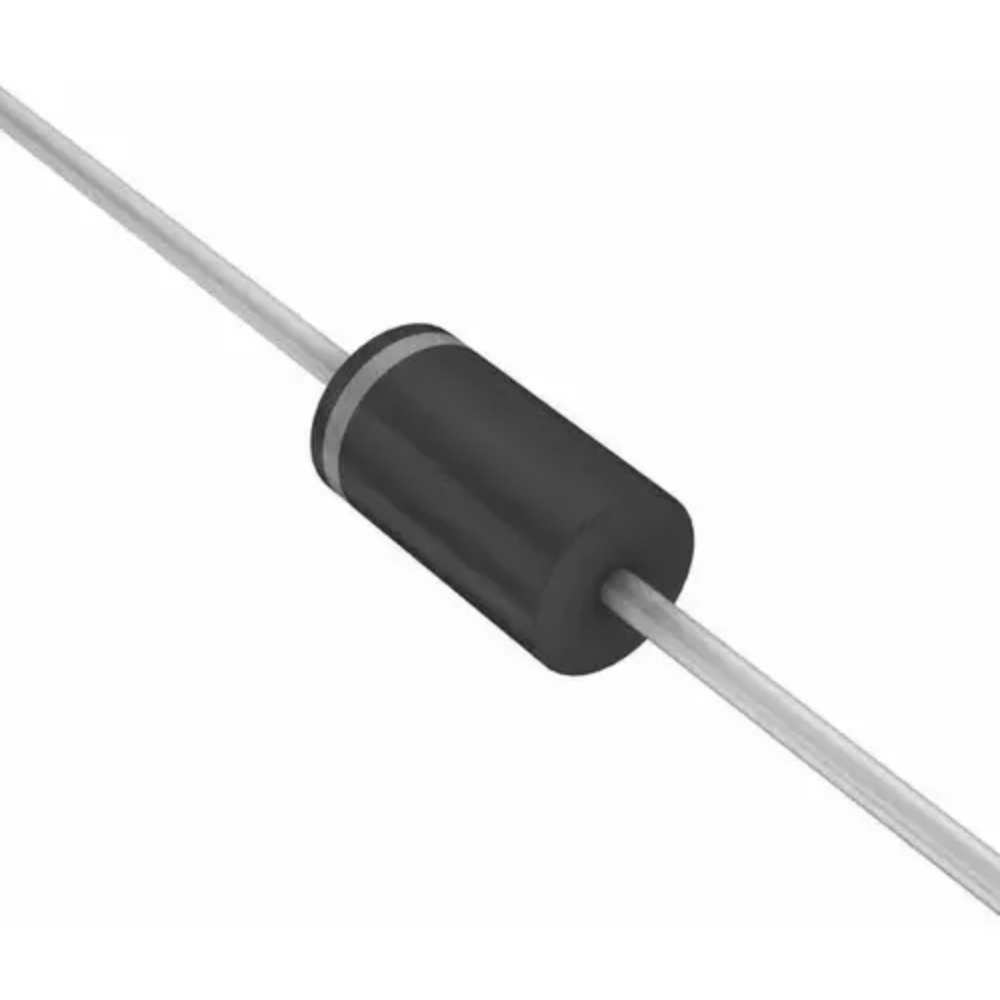

SB560-T-Diodes Incorporated-60V 670mV@5A DO-201AD Schottky Diodes ROHS

Description

The SB560-T is a high-performance 60V, 5A Schottky barrier rectifier diode designed for high efficiency and rapid switching applications. Housed in a rugged, through-hole DO-201AD axial package, it features an ultra-low forward voltage drop of just 670mV at 5A to drastically reduce power loss and heat generation in your circuits. Built with an integrated guard ring for transient protection and fully RoHS compliant, this reliable diode is perfect for switch-mode power supplies, reverse polarity protection, and high-frequency inverters.

Key Features & Design Advantages :

• Epitaxial Construction: Built with a guard ring die structure to deliver enhanced transient protection.
• High Efficiency: Features ultra-low power loss alongside high current capabilities.
• Fast Switching Speed: Utilises Schottky barrier technology for rapid state recovery, making it ideal for high-frequency operations.

Common Applications:

• Low-Voltage Inverters: Used to manage high-frequency power inversion.
• Free-Wheeling Diodes: Deployed across inductive loads to suppress voltage spikes.
• Polarity Protection: Safeguards sensitive downstream electronics against reverse battery or power supply insertion.

Packing List:

1 x SB560-T-Diodes Incorporated-60V 670mV@5A DO-201AD Schottky Diodes ROHS
