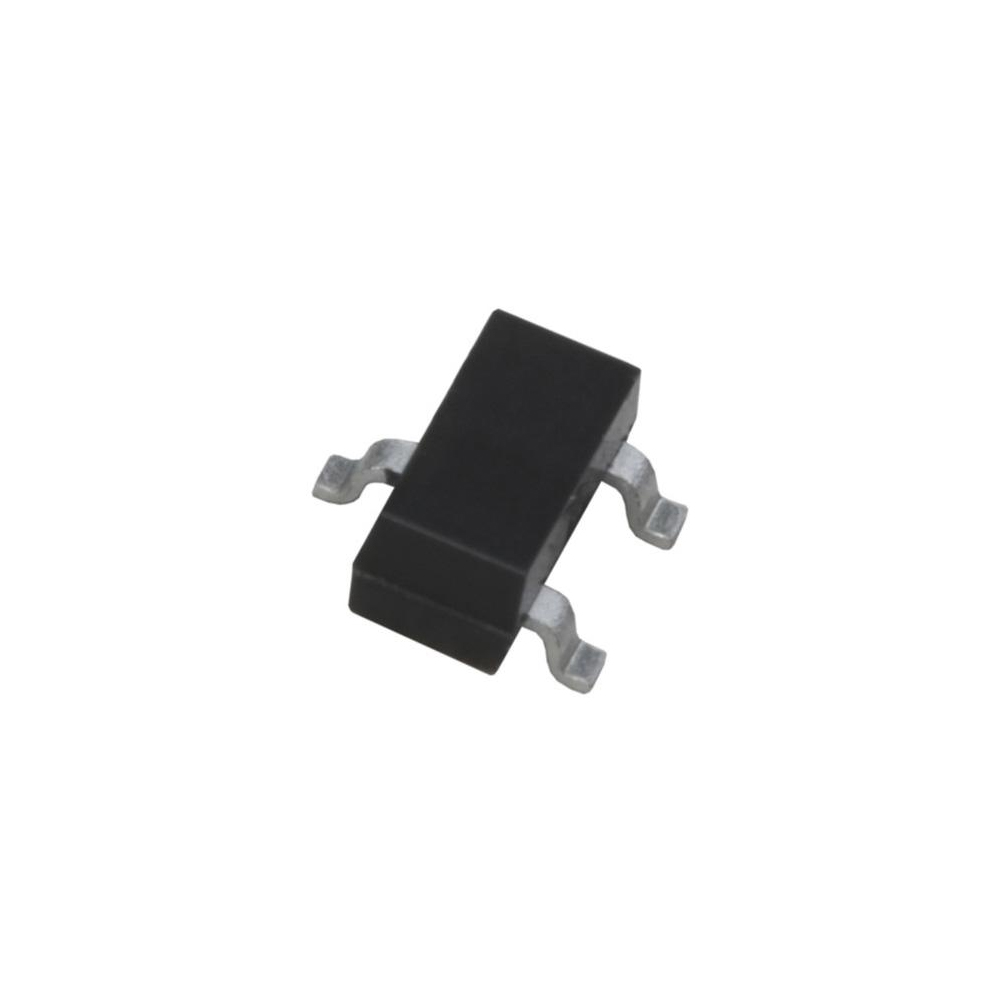

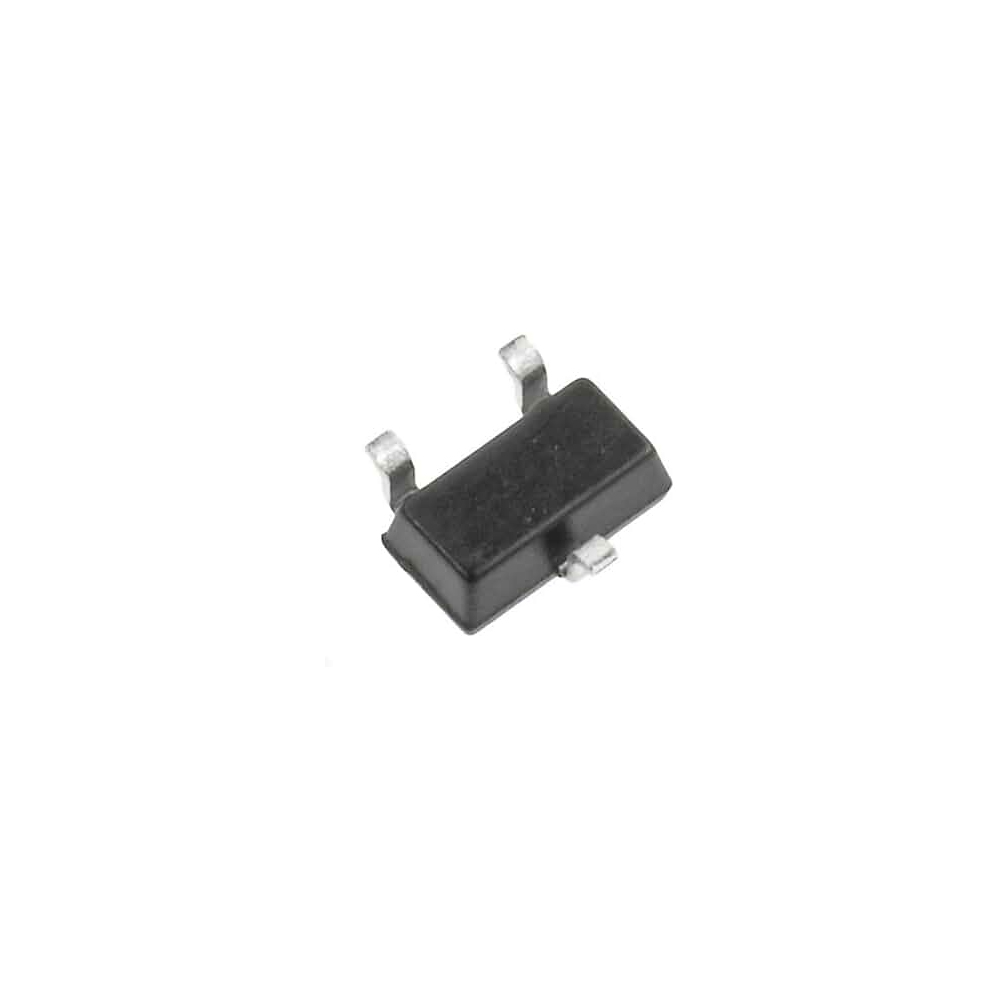

TR PMBT3904 Bipolar (BJT) Single NPN Transistor Surface Mount (25 pc)

Description

PMBT3904 is a general-purpose semiconductor device that may be used to amplify, switch, or control a signal or power. Because the PMBT3904 is an NPN transistor, we must apply a little amount of positive voltage to the transistor’s base via a current limiting resistor known as an RB (Base Resistor). When the proper amount of current passes through the transistor’s base, the transistor will switch on.  The PMBT3904 NPN transistor is packaged in a tiny SOT-23 package. It operates on low current and voltage.

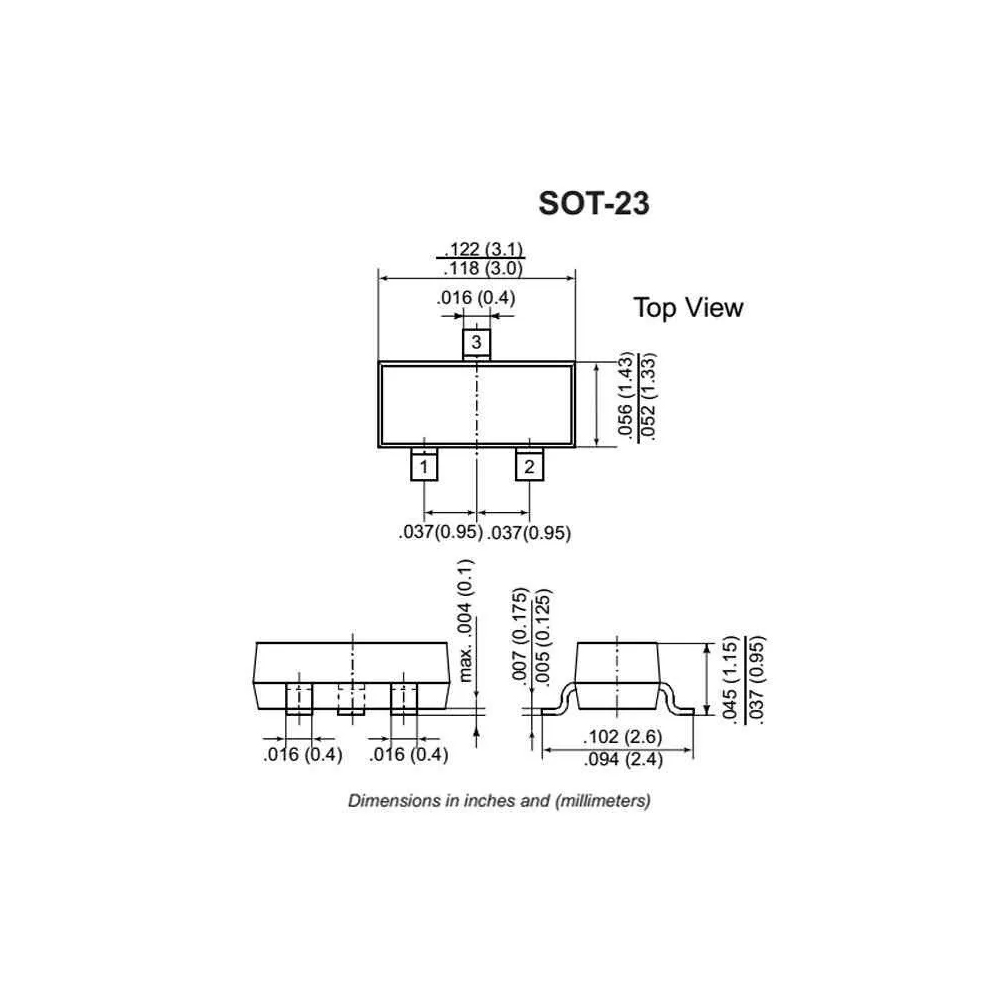

PINOUT

FEATURES

• General-purpose amplifier applications
• NPN epitaxial silicon, planar design
• Collector current IC= 100mA
• In compliance with EU RoHS 2002/95/EC directives

Package Include:

1 x TR PMBT3904 Bipolar (BJT) Single NPN Transistor Surface Mount (25 pc)
