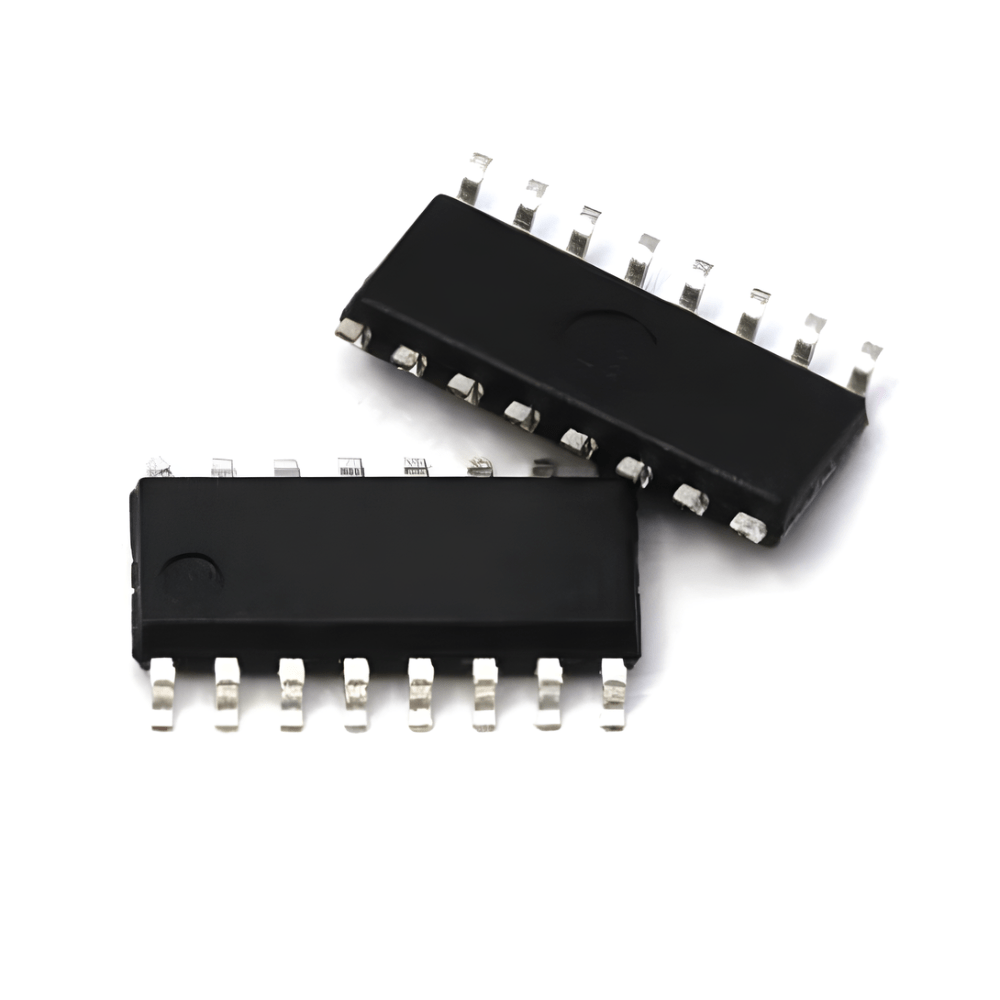

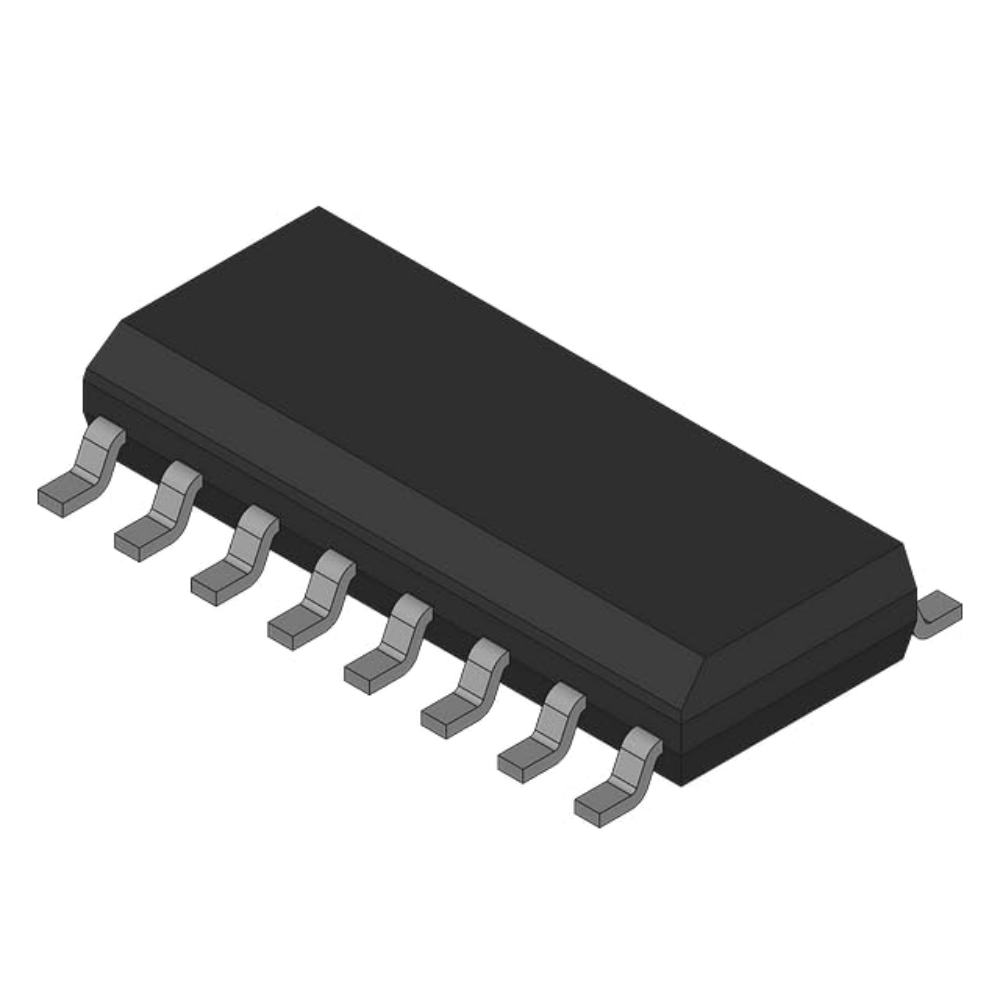

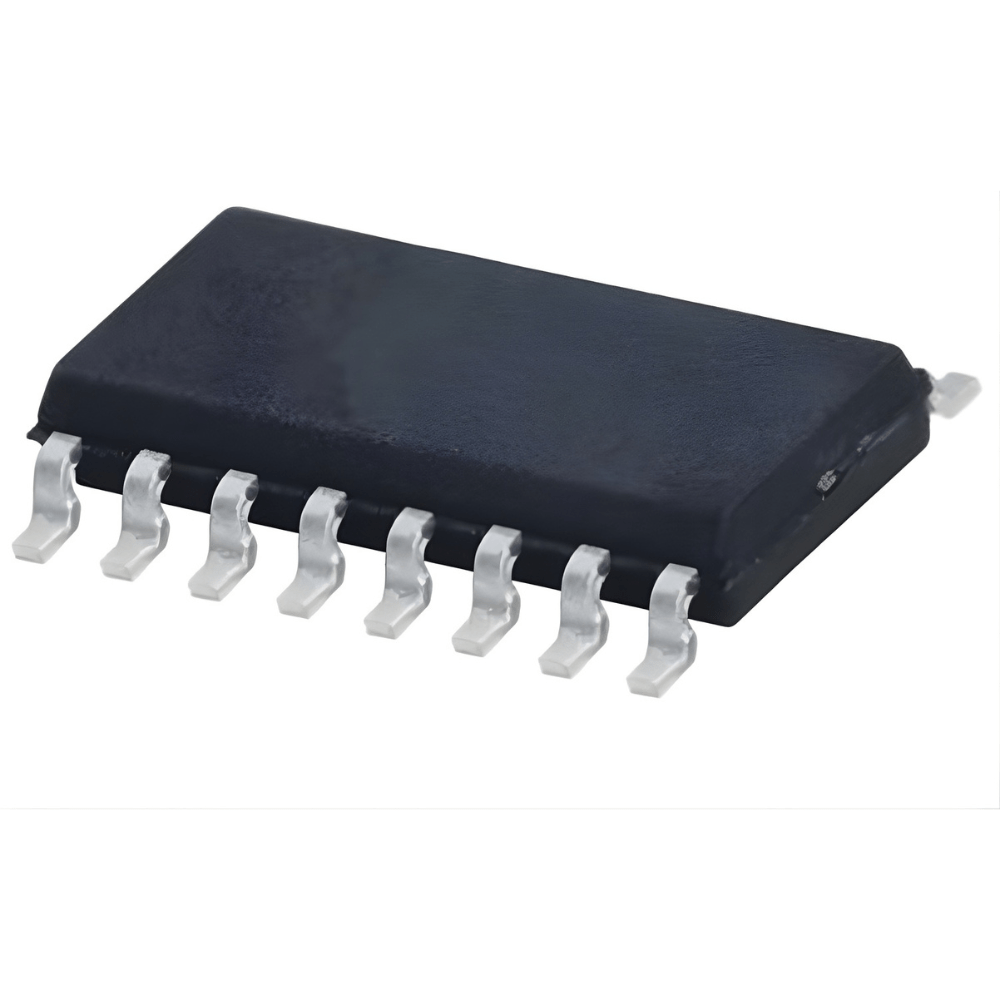

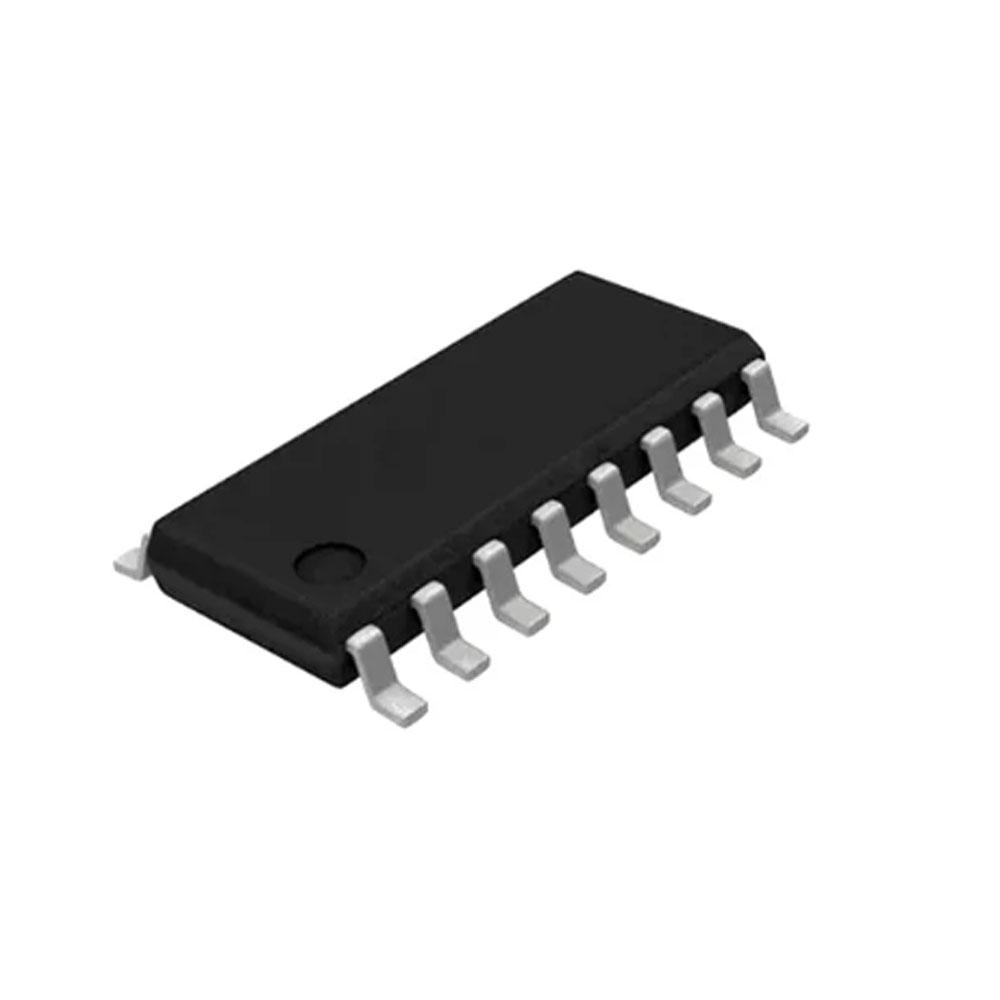

ULN2003 SMD 7 Darlington Transistor Arrays IC (Original)

Description

The ULN2003 is high-voltage, high-current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each channel is rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. These versatile devices are useful for driving a wide range of loads including solenoids, relay DC motors, LED display filament lamps, thermal printheads and high-power buffers. The ULN2003 is  supplied in a 16-pin DIP package with a copper leadframe to reduce thermal resistance.

Features:-

• Seven Darlingtons per package
• Output current 500 mA per driver (600 mA peak)
• Output voltage 50 V
• Integrated suppression diodes for inductive loads
• Outputs can be paralleled for higher current
• TTL/CMOS/PMOS/DTL compatible inputs
• Input pins placed opposite to output pins to simplify layout

Package Includes:

1 x ULN2003 7-Darlington Transistor Arrays IC SMD-16 Package
