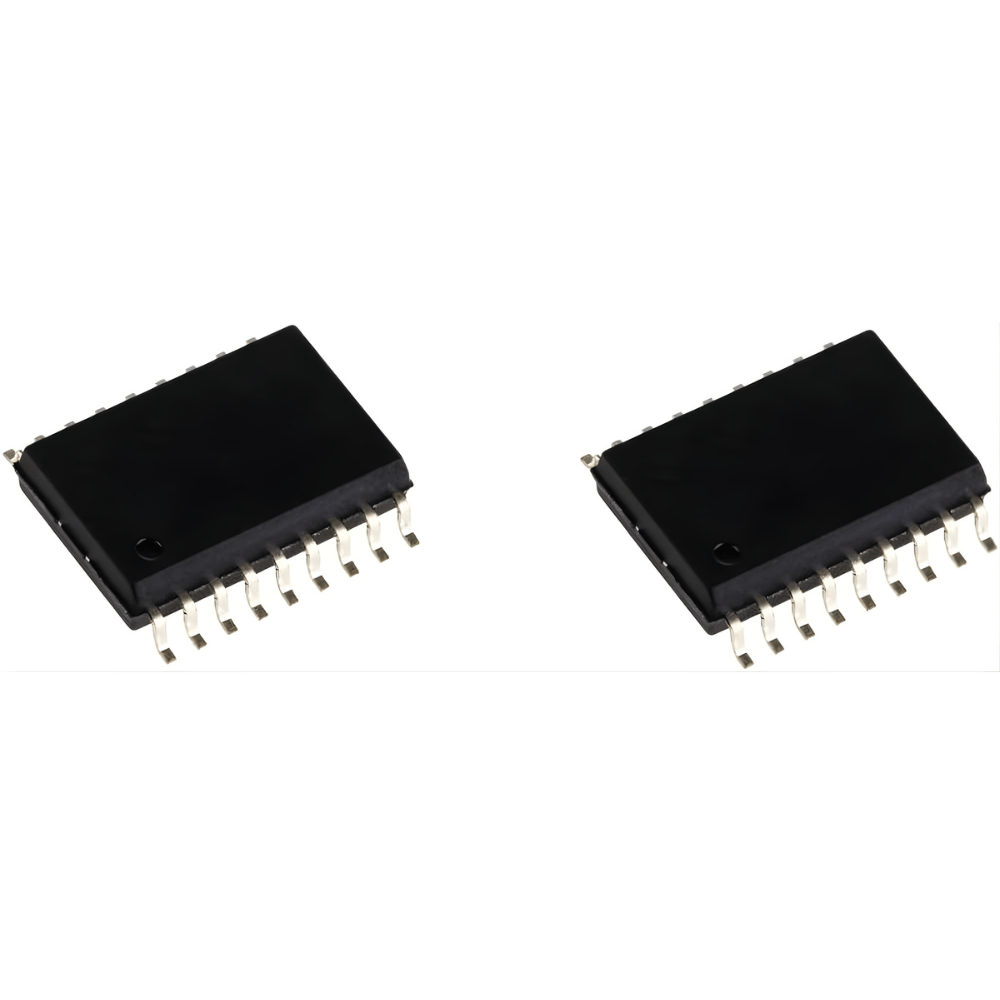

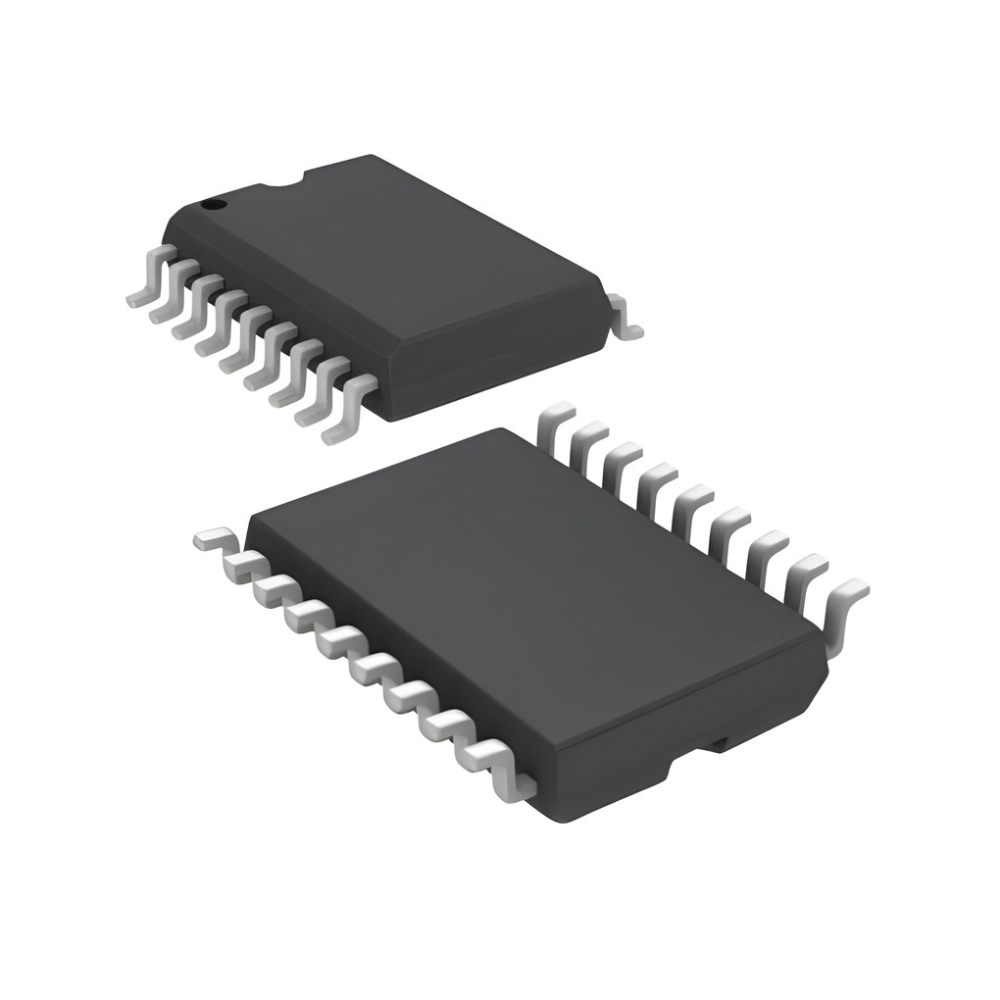

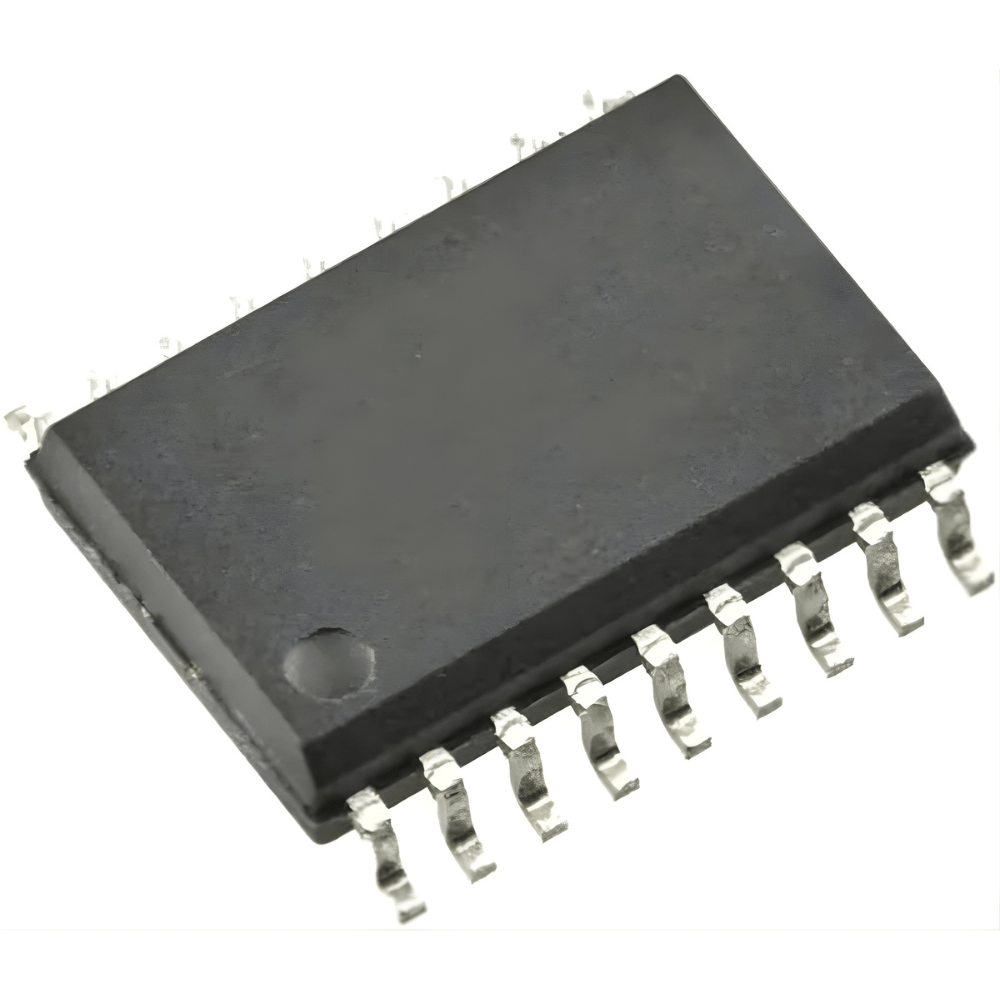

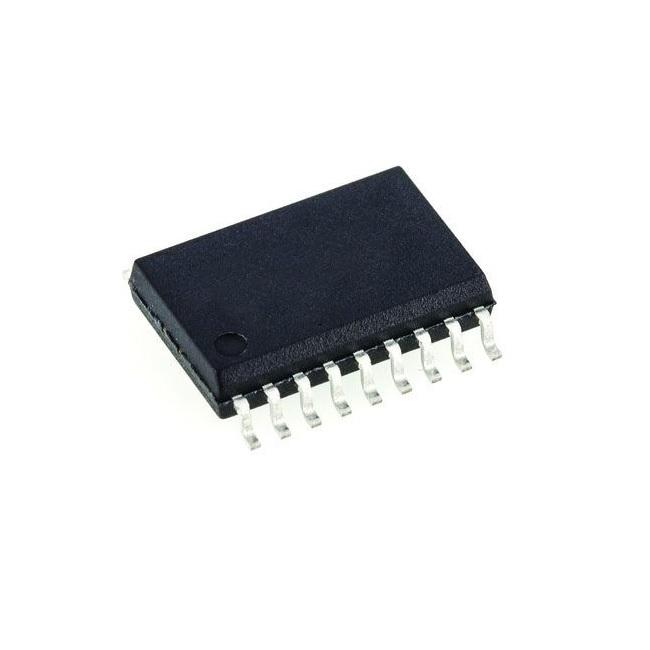

ULN2803AG 18-Pin SMD IC (Original)

Description

The ULN2803A IC is a 50 V, 500 mA Darlington transistor array. The device consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair in ULN2803 IC is 500 mA. The Darlington pairs may be connected in parallel for higher current capability.
Applications for ULN2803 IC include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. The ULN2803A device has a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.

Features :

• Output current (single output): 500 mA (max)
• High sustaining voltage output: 50 V (min)
• Output clamp diodes
• Inputs compatible with various types of logic

Datasheet available here

Package Includes

1x ULN2803 Darlington Driver IC (SOIC18)
