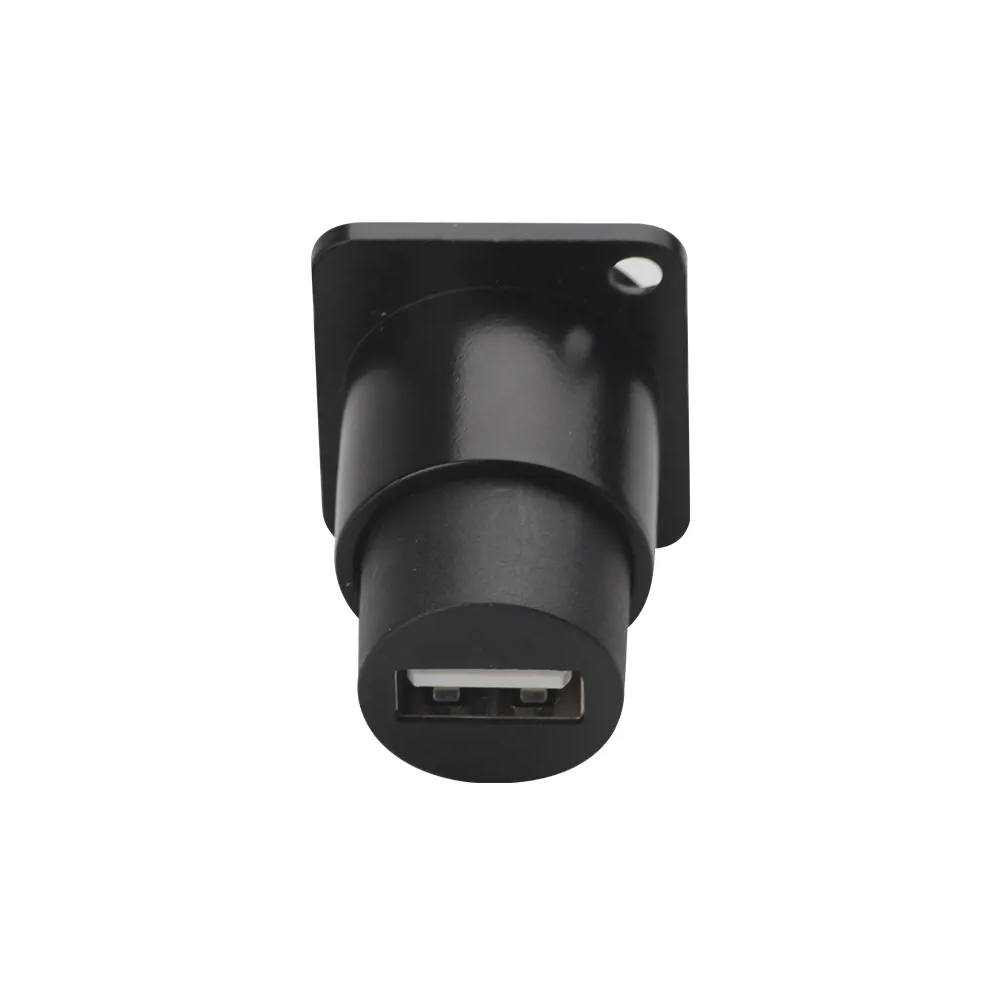

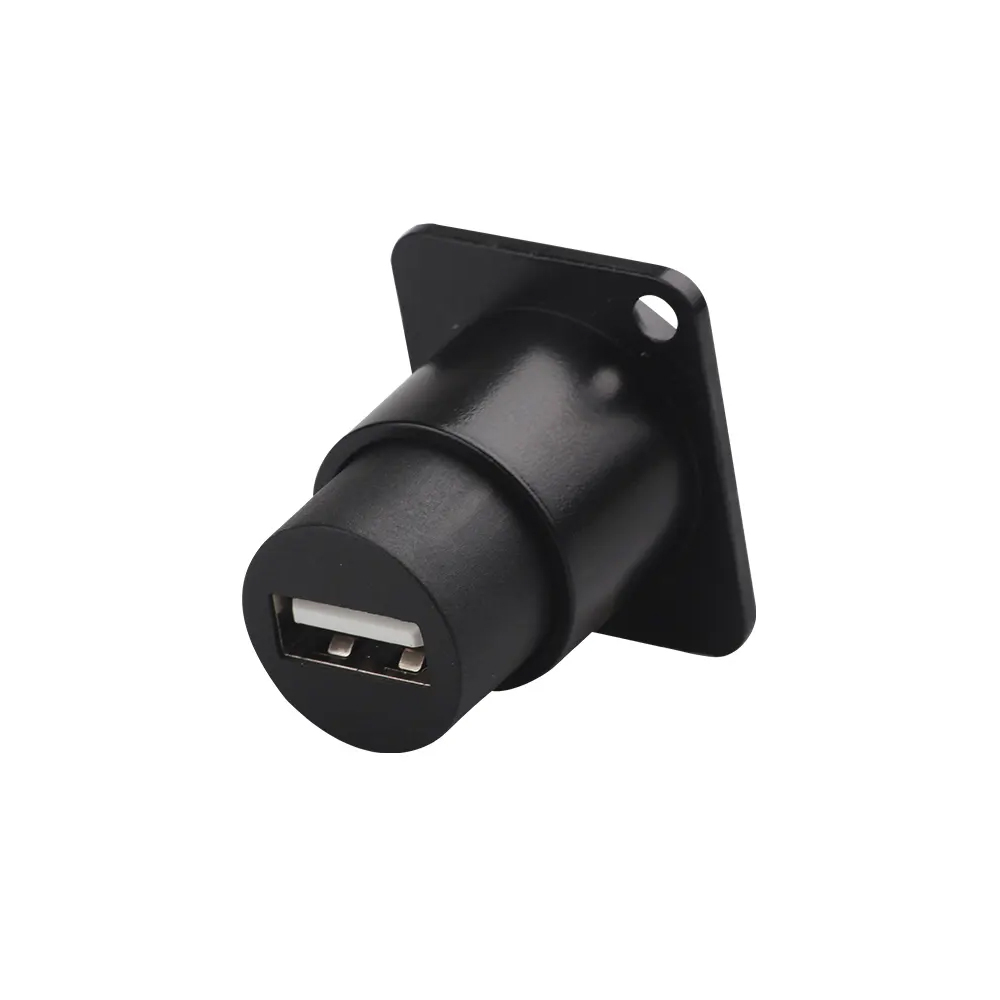

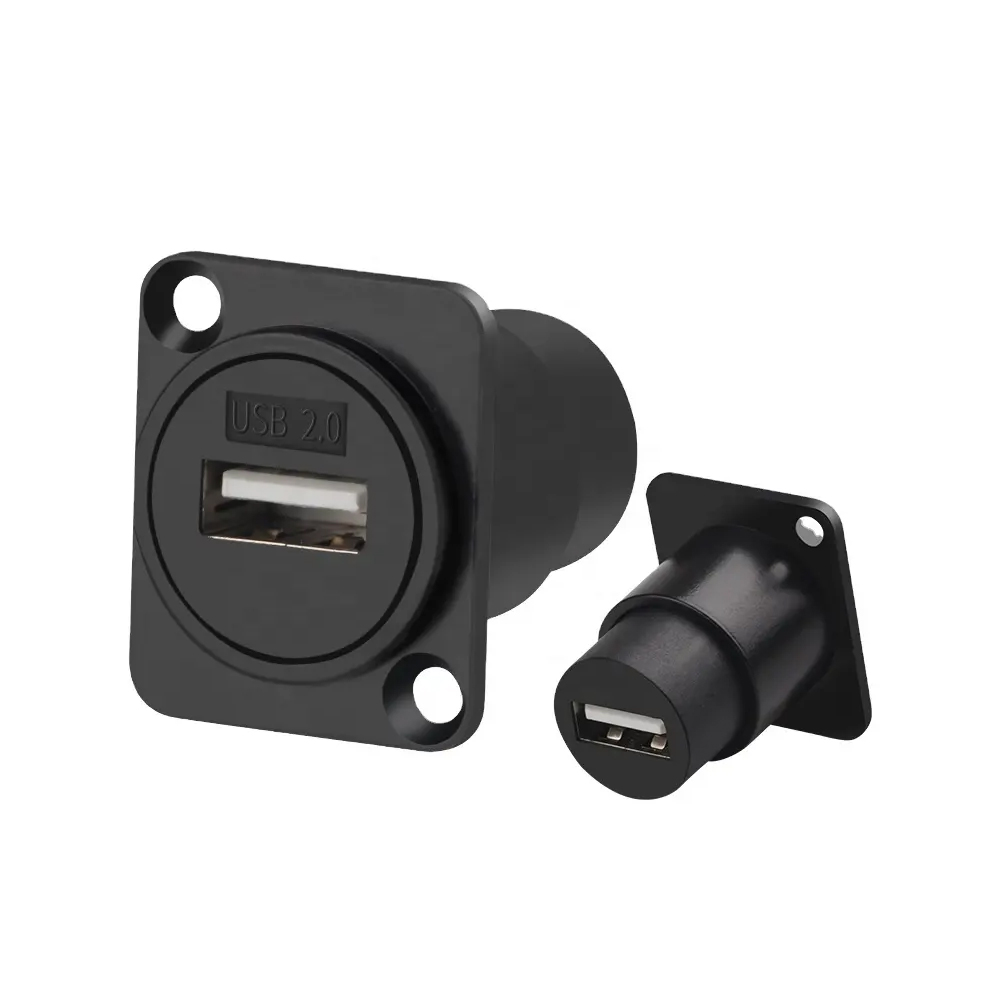

USB 2.0 Female A-A Panel Mount Connector Type-D

Electrical Characteristics

• DC Resistance: ≤300mΩ
• Contact Resistance: ≤20mΩ
• Dielectric strength: 1000V(AC750V)1min no break down and flashover
•  Insulation Resistance: ≥1000MΩ

Physical Characteristics

• Phosphor bronze with nickel plated, connector pins with golden plated
• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
• Inserting Duration: ≥750 times
• Punching Duration: ≥250 times
• Jack housing plastic part: UL 94V-2, RED, YELLOW, BLUE, GREEN, BLACK and other colours available
• Termination caps material UL94V -2
• Working temperature: -25ºC~60ºC

Packing List:

1 x USB 2.0 Female A-A Panel Mount Connector
